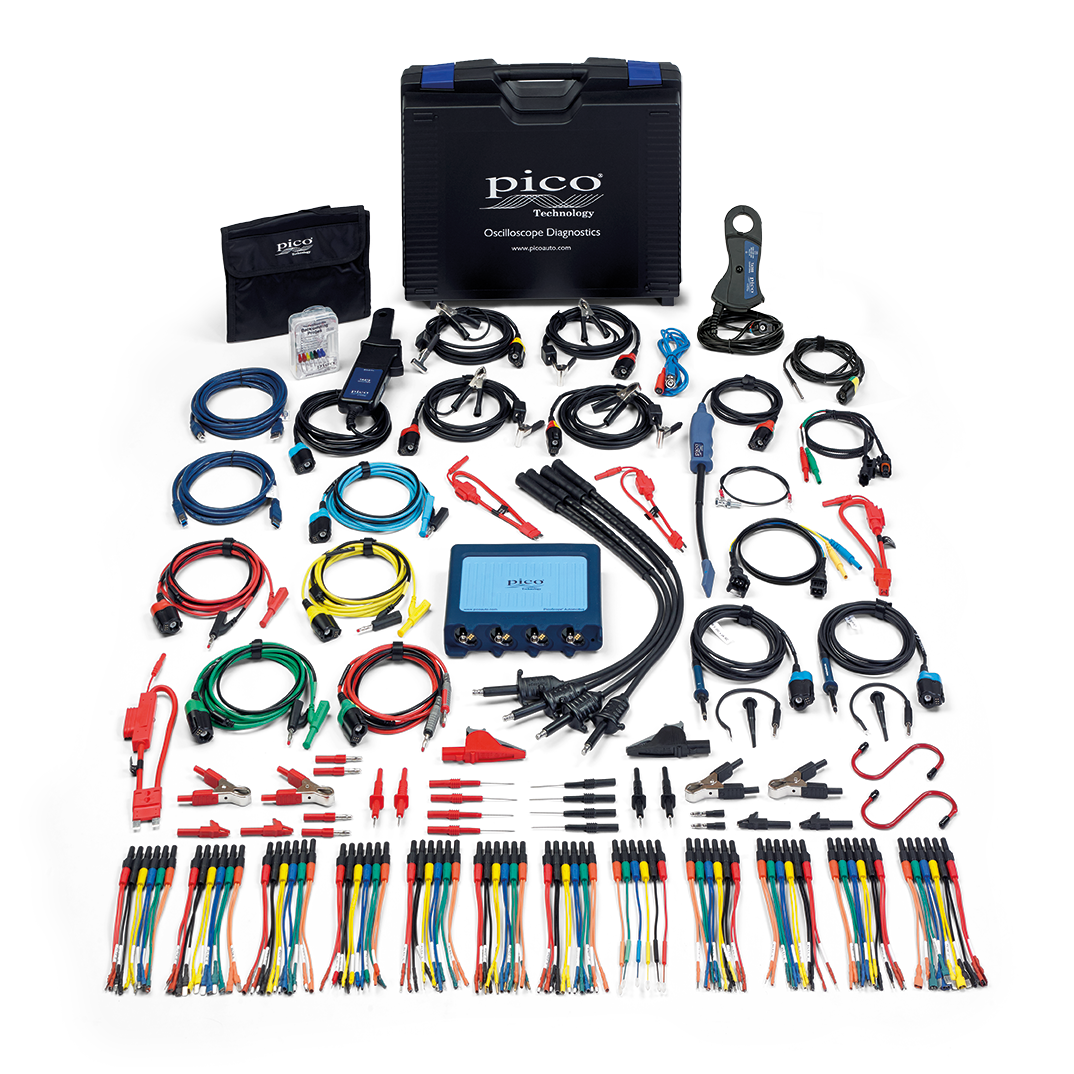

The PicoScope 4425A Advanced Diagnostic Kit (PQ180) is a comprehensive solution for automotive professionals seeking advanced diagnostic capabilities. This kit combines the high-performance 4-channel PicoScope 4425A oscilloscope with a suite of smart probes and accessories, enabling precise analysis of vehicle systems.
Featuring PicoBNC+™ technology, the 4425A oscilloscope offers smart probe interfacing, powered probes, and channel status lights, simplifying setup and ensuring accurate measurements. The PicoScope Automotive software provides over 150 guided tests, real-time waveform analysis, and access to a vast waveform library, facilitating efficient diagnostics.
The PQ180 kit equips technicians with the tools needed for thorough and reliable vehicle diagnostics, whether diagnosing ignition systems, fuel injectors, or CAN bus networks.
Key Features & Benefits
Smart Probe Interfacing
✔︎ PicoBNC+™ technology enables automatic probe recognition and configuration, reducing setup time and errors.
Powered Probes
✔︎ Probes receive power directly from the oscilloscope, eliminating the need for batteries and ensuring consistent performance.
Channel Status Lights
✔︎ Visual indicators on each channel assist in proper probe connection and status monitoring.
Comprehensive Software
✔︎ PicoScope Automotive software offers guided tests, waveform analysis tools, and a vast waveform library for efficient diagnostics.
Versatile Diagnostics
✔︎ Capable of analyzing various vehicle systems, including ignition, fuel injection, and communication networks.
Specifications
| Channels | 4 |
| Bandwidth | 20 MHz |
| Sample Rate | Up to 400 MS/s |
| Resolution | 12-bit |
| Memory | 250 million samples |
| Power Supply | USB-powered |
| Operating System Compatibility | Windows 10 & 11 |
| Connectivty | USB 3.0 (backward compatible with USB 2.0) |
