EZDS Zenith Z7 Standard Diagnostic Kit

Only 2 left
SKU: EZDS-ZenithZ7Standard
Regular price $3,800.00 USD
Rendering loop-subscriptions

Our team is here to help answer any questions you have on tools like this or find the right package for your shop.

The Zenith Z7 is an all-in-one, wireless multi-brand bi-directional scan tool for fast diagnostics on various vehicles. With its Android 11 OS, 10.1” FHD touchscreen, and advanced CAN FD & DoIP protocols, it simplifies service with ADAS calibration, topology scans, and more.

The Zenith Z7 is a cutting-edge diagnostic scan tool designed for mechanics and workshops handling multiple car brands and types of vehicles. Built with an Octa-Core 2.2 GHz processor and running on Android 11, the Z7 offers unmatched speed and performance for vehicle diagnostics, coding, and programming. With its 10.1” FHD capacitive touchscreen, this tool provides a user-friendly interface for fast and accurate analysis.

Whether it’s bi-directional communication for commercial trucks, ADAS calibration, or CAN FD protocols, the Zenith Z7 delivers all-system scans with ultra-fast topology. It has robust features like J2534 remote diagnostics, 24V support for heavy-duty vehicles, and comprehensive pre- and post-scan reports. With its versatile capabilities, the Z7 simplifies diagnostics and helps technicians deliver faster and more accurate repairs.

Features & Benefits

✔︎ Octa-Core 2.2 GHz Processor & Android 11 OS: High-performance CPU for quick processing and easy navigation.
✔︎ Bi-Directional Communication: Diagnose and test components with real-time feedback, compatible with 24V commercial vehicles and buses.
✔︎ Wireless & Ethernet Connectivity: Easily connect via Wi-Fi, Bluetooth 5.0, or RJ45 Ethernet for seamless communication with the vehicle.
✔︎ All-Systems Topology Scan: Visualize entire vehicle systems with ultra-fast topology for precise diagnostics.
✔︎ ADAS Calibration Software: Included software for ADAS systems like cameras and radars, making complex calibrations simple.
✔︎ Supports CAN FD & DoIP Protocols: Ready for the latest vehicle communication protocols, ensuring you’re prepared for current and future diagnostic needs.
✔︎ Remote Diagnostics: Utilize J2534 technology for remote diagnostics and programming across different car brands.
✔︎ Pre- & Post-Diagnostic Reporting: Generate detailed diagnostic reports before and after repairs for comprehensive job tracking.
✔︎ Durable and Portable Design: With an IP65-rated rugged build and a battery life capable of lasting through extensive diagnostic sessions, it’s built to withstand workshop environments.

Specifications

Operating System Android 11
Processor Octa-Core 2.2 GHz
Memory 64GB internal, 4GB RAM, MicroSD for expandable memory
Display 10.1” FHD (1920x1200)

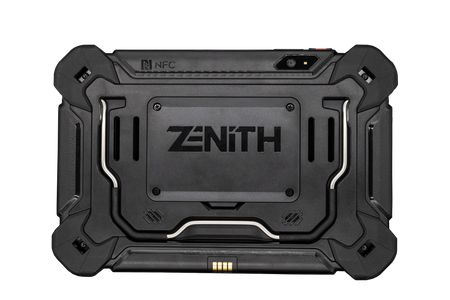

Rear Camera 8MP rear-facing with LED flash
Connectivity

Wi-Fi

Bluetooth 5.0

NFC

USB 1ea

USB C 1ea

RJ45 Ethernet

Wireless Connectivity Wi-Fi, Bluetooth 5.0, NFC
Weight Approximately 1.2 kg (tablet), 400g (VCI)
Battery Charging Input Li-ion 5800mAh, rechargeable
Sensors Ambient light, gyroscope, accelerometer
Protocols

CAN, ISO, SAE, J1850, J2534

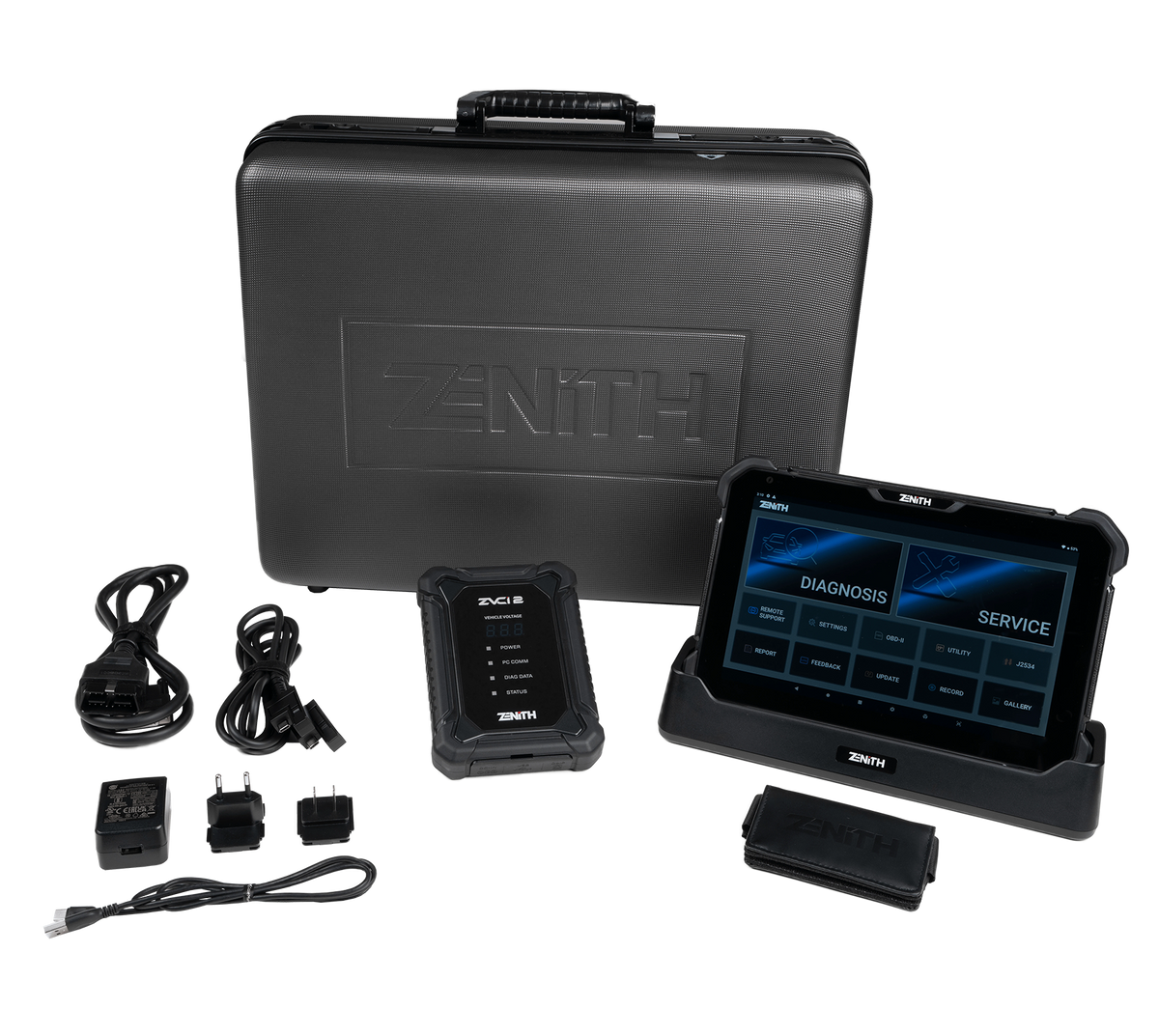

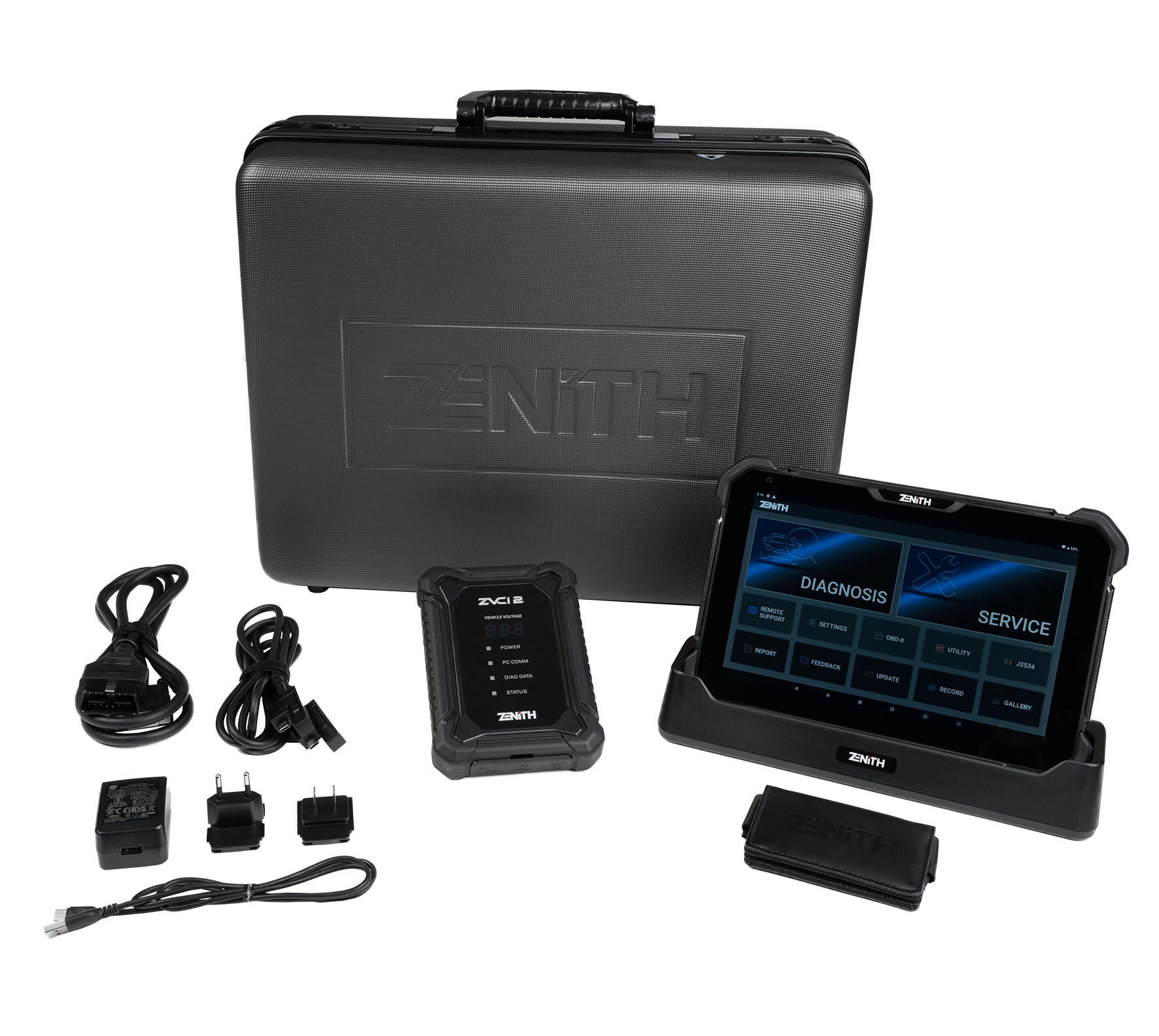

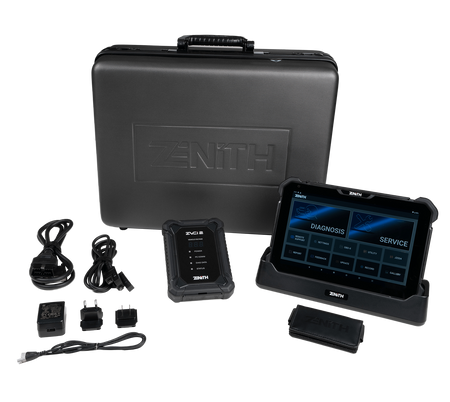

What’s in the Box

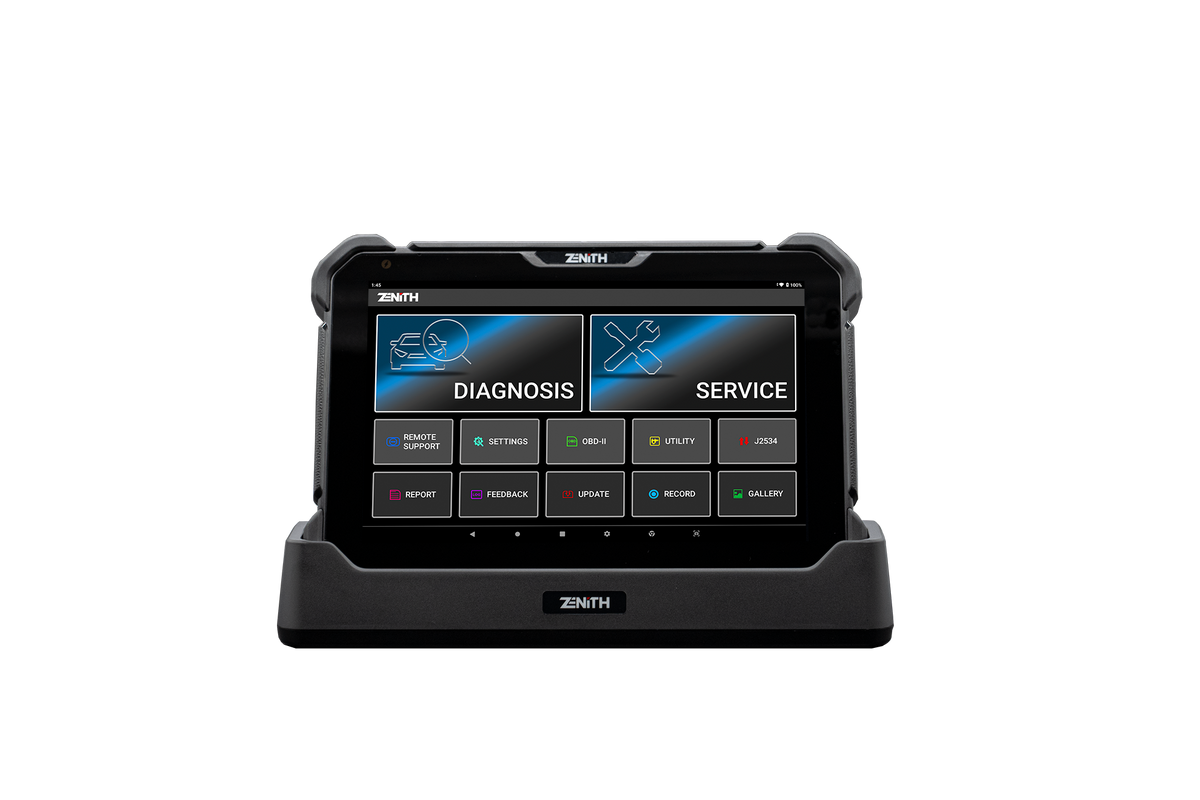

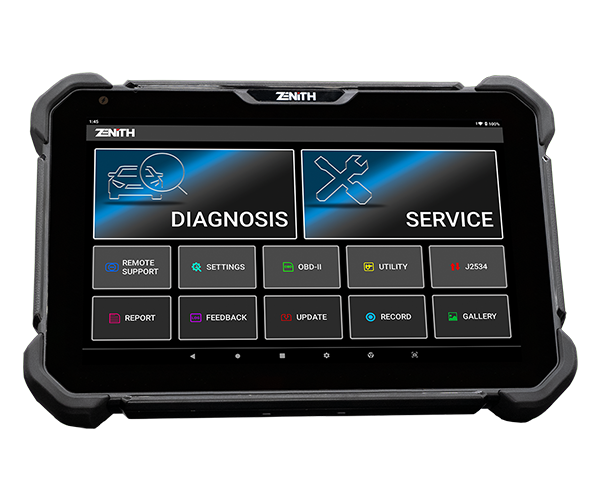

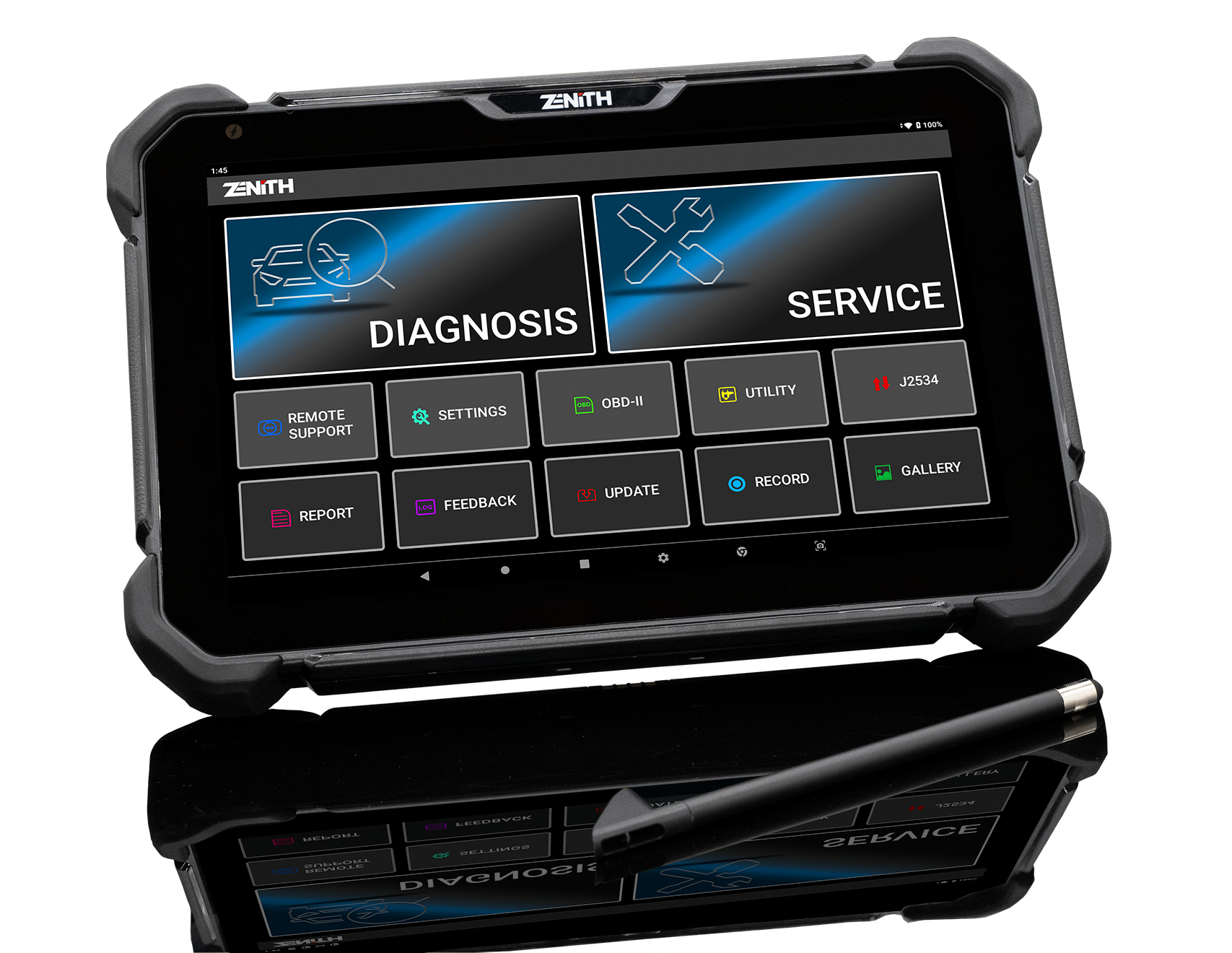

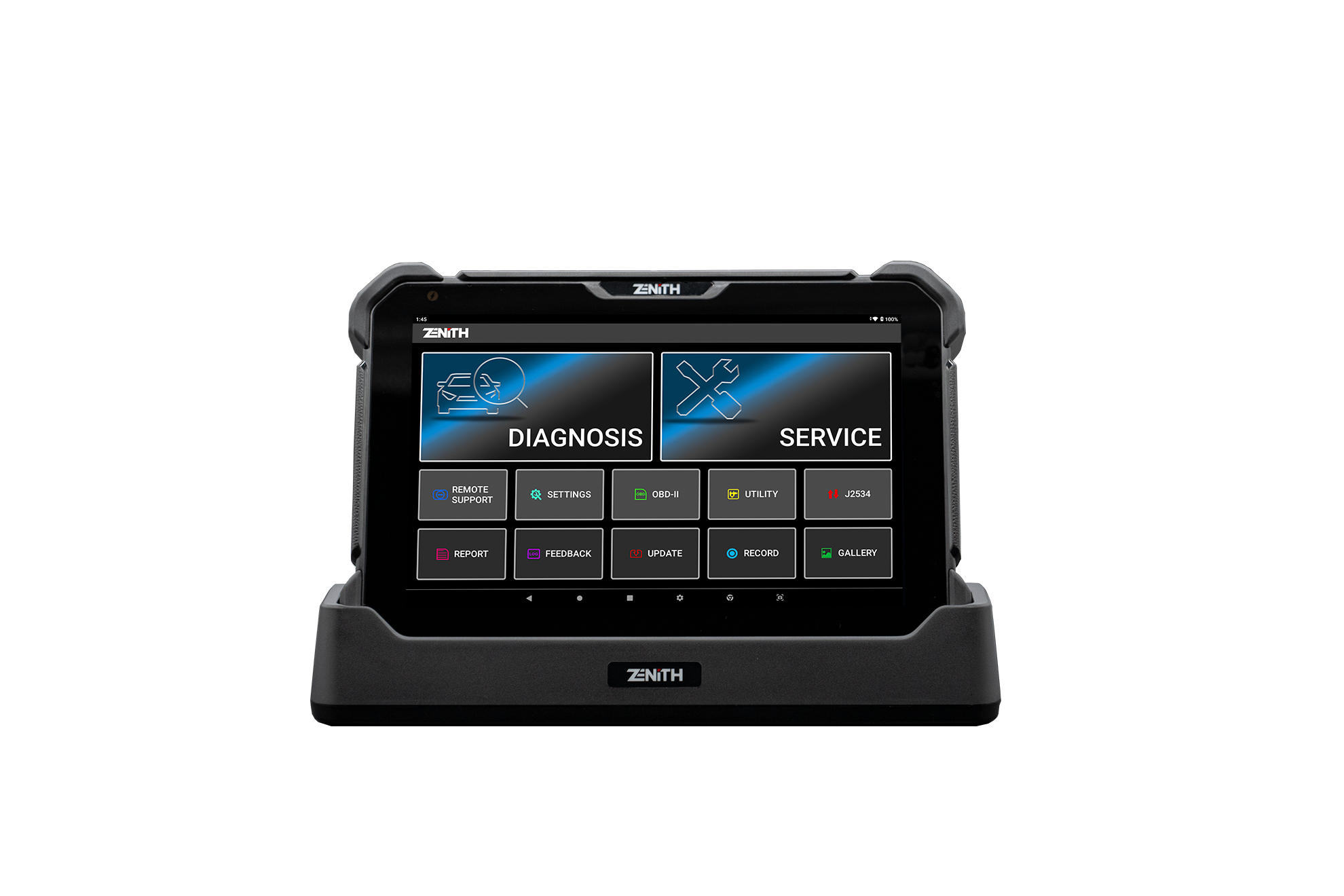

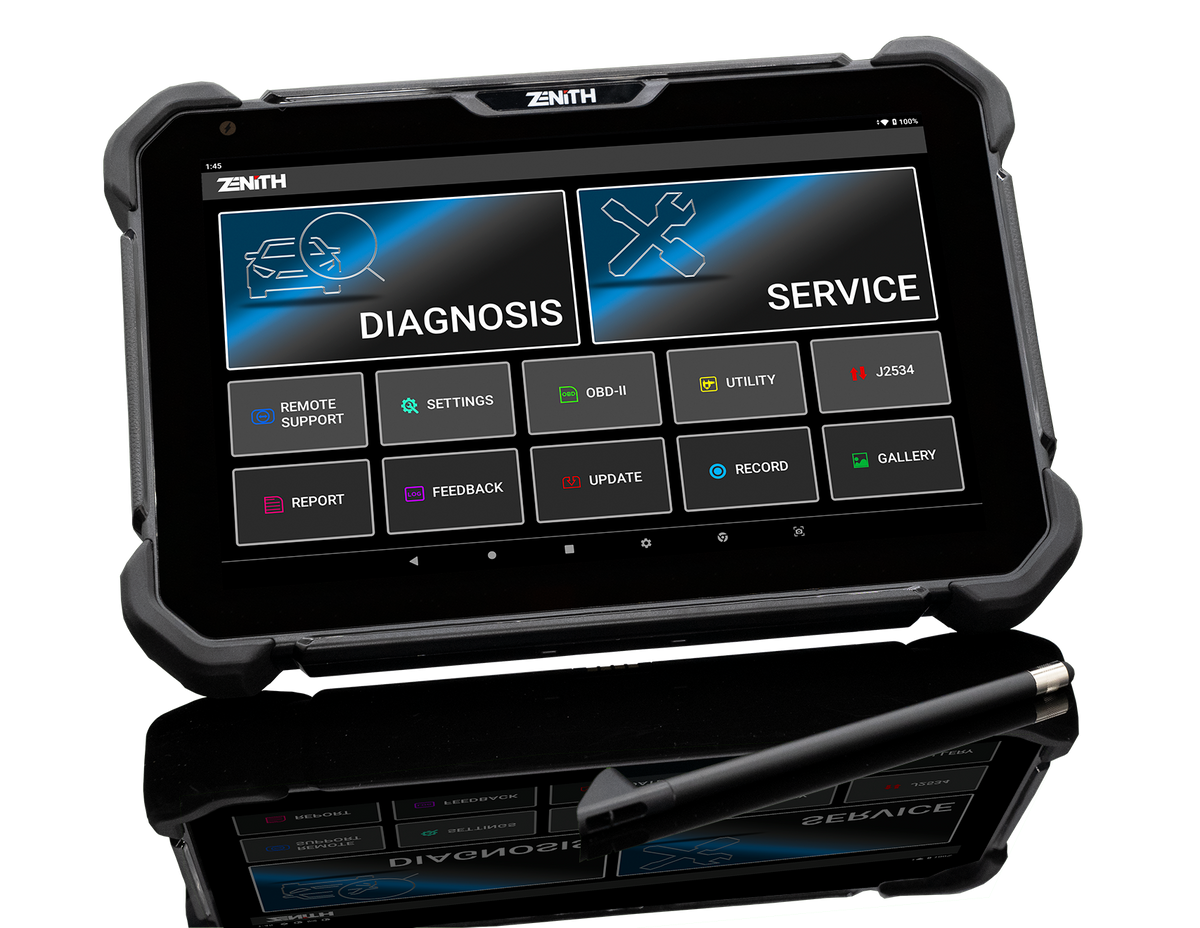

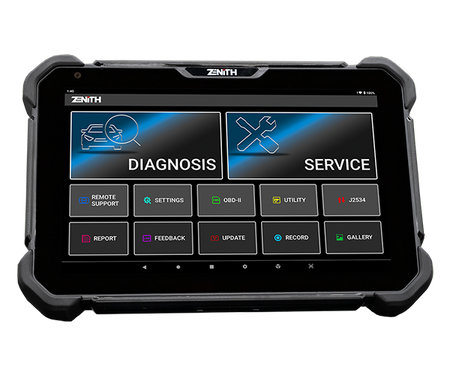

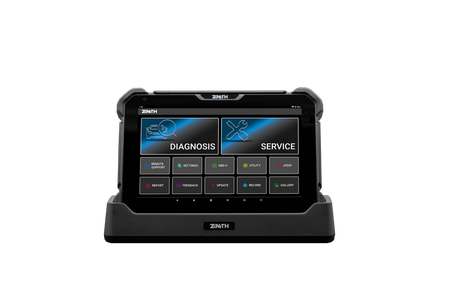

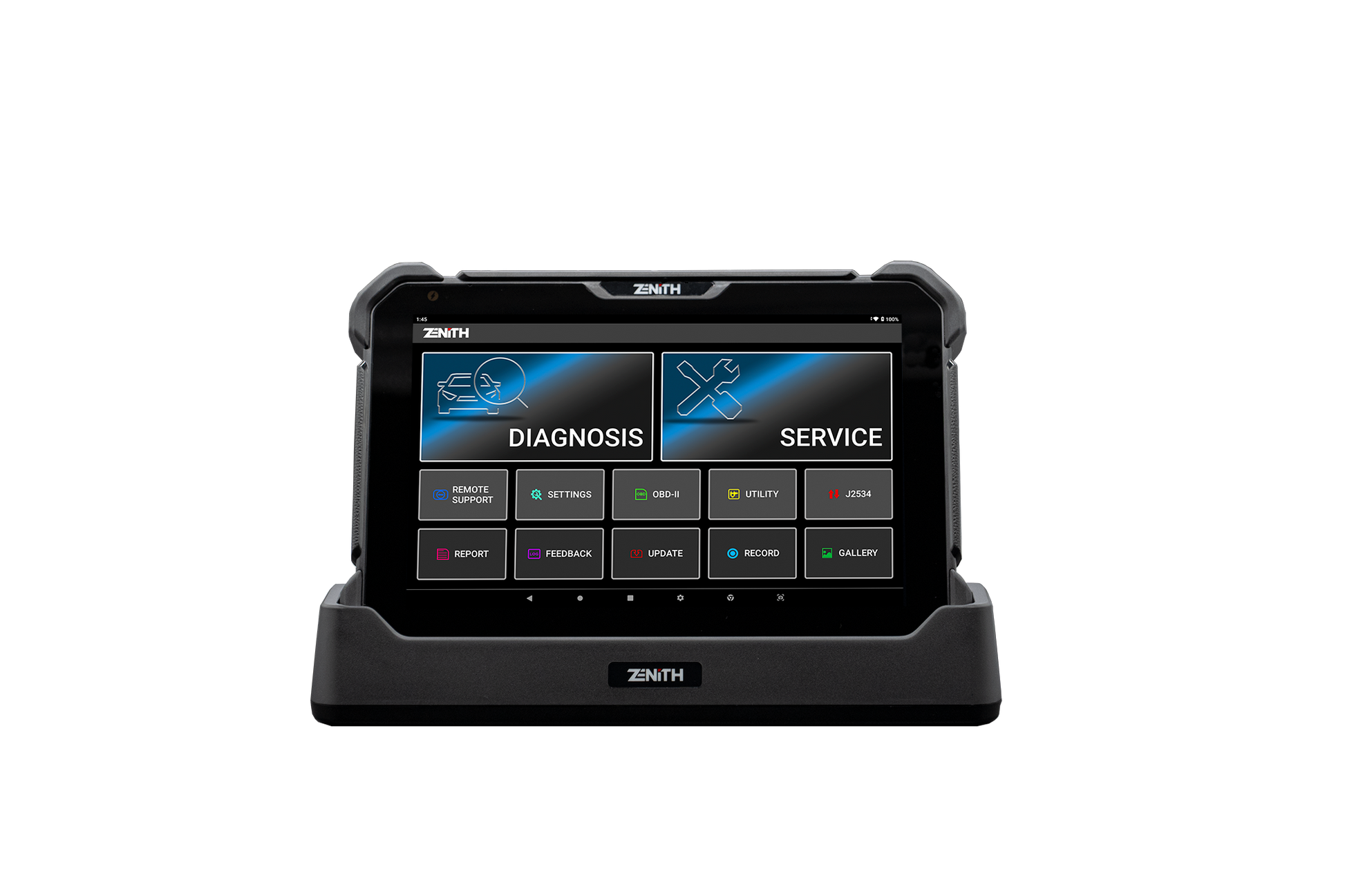

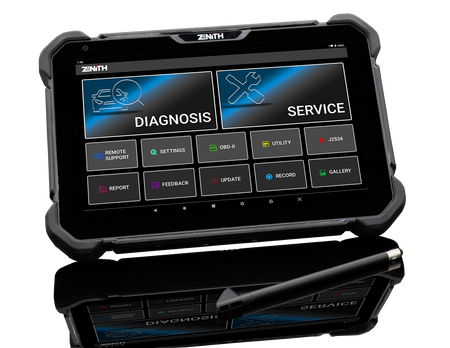

🛠️ Zenith Z7 Diagnostic Tablet (10.1” FHD Screen)

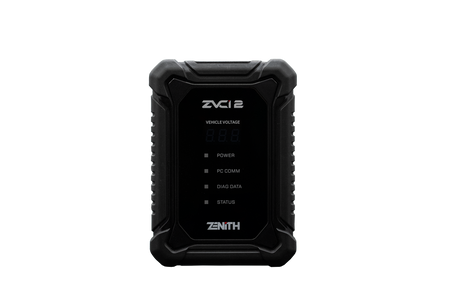

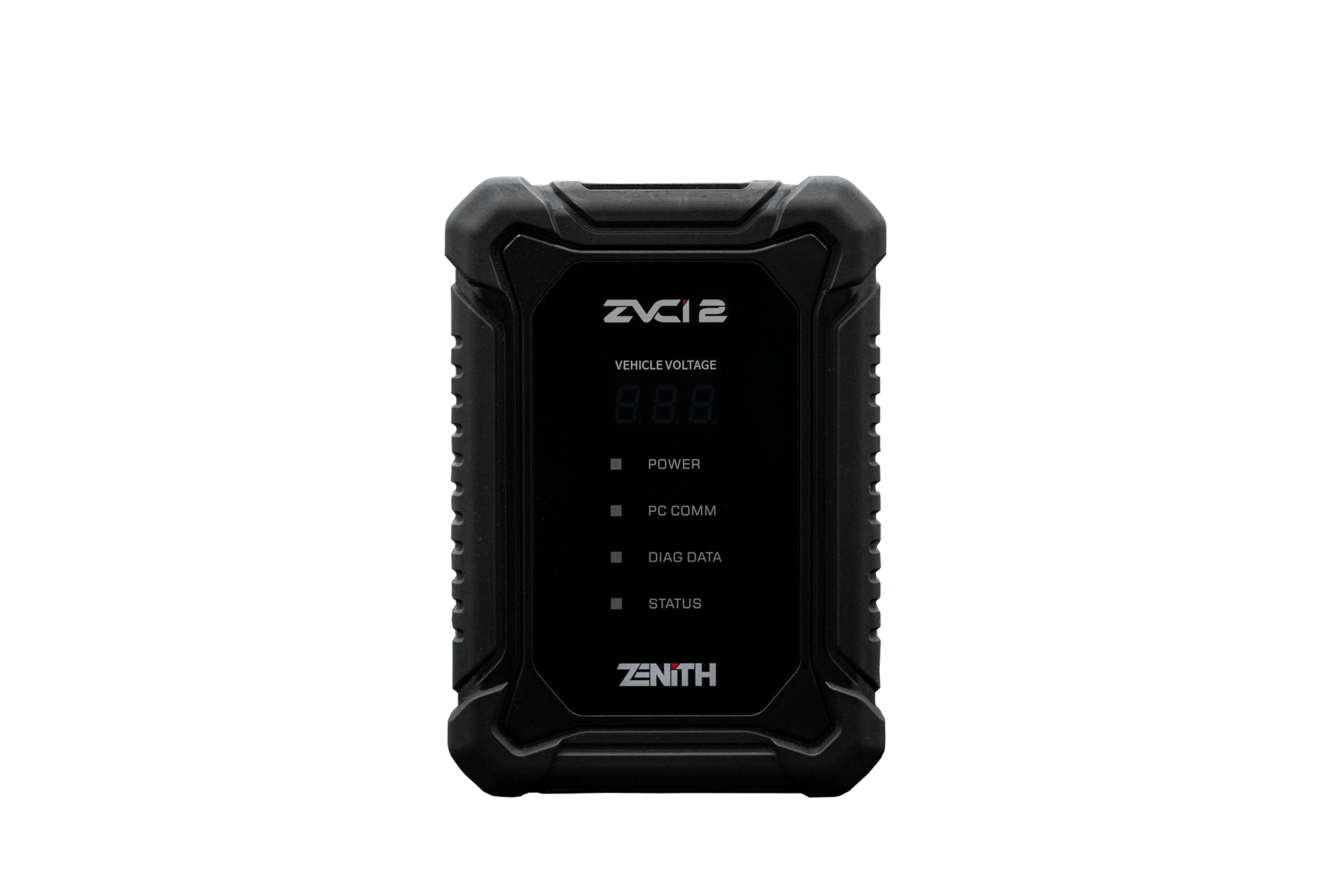

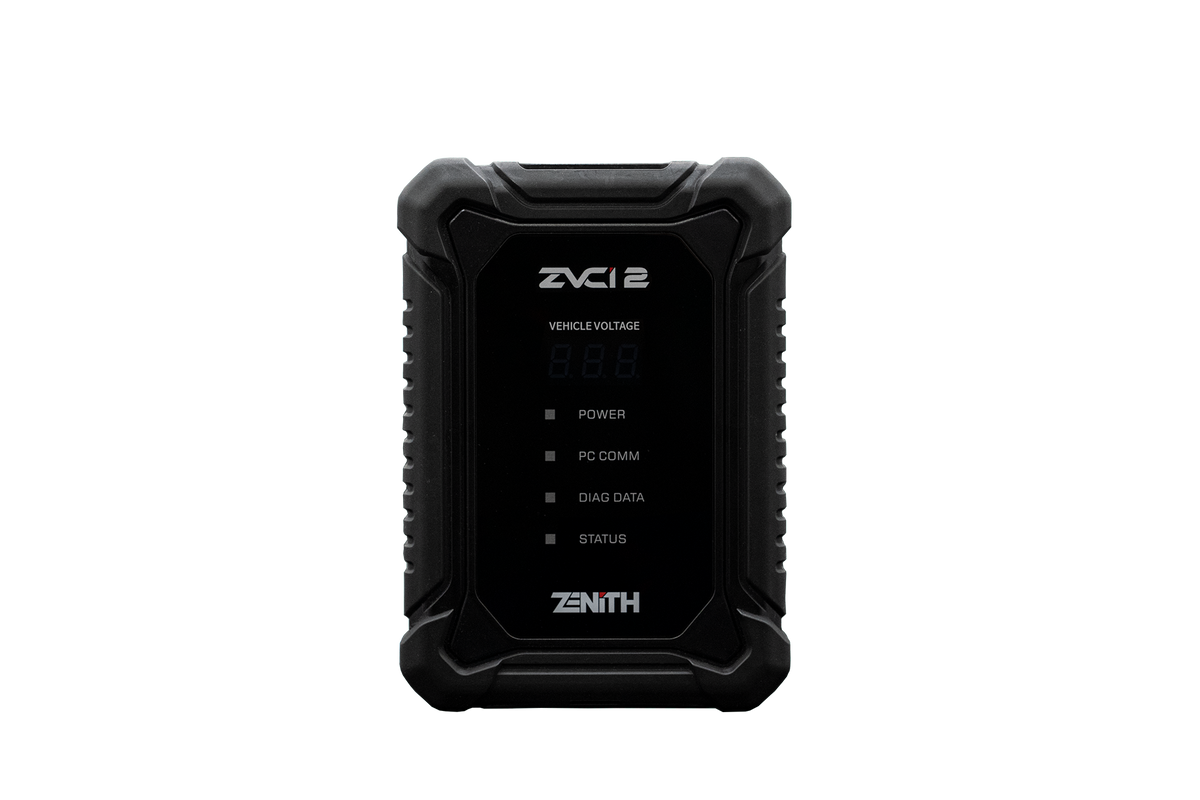

🛠️ VCI (Vehicle Communication Interface)

🛠️ USB and USB-C cables

🛠️ Power adapter

🛠️ 4 Hard keys for control (Power, Volume +, Volume -)

🛠️ Rugged carrying case

🛠️ User manual

🛠️ One-year software subscription for updates

FAQS

1. What vehicles are supported by the Zenith Z7?

The Zenith Z7 supports most U.S., Asian, and European vehicles, including both 12V and 24V systems. It also supports advanced vehicle communication protocols like CAN FD and DoIP.

2. Does the Zenith Z7 come with a subscription?

Yes, the Z7 includes a one-year subscription for software updates, ensuring your tool stays up-to-date with the latest diagnostics capabilities.

3. Can I use the Zenith Z7 for ADAS calibration?

Yes, the Z7 comes with ADAS calibration software, making it easy to calibrate cameras, radars, and other ADAS systems.

4. Does the Z7 support remote diagnostics?

Yes, the Zenith Z7 supports J2534 technology, enabling remote diagnostics and ECU programming for various vehicle brands.

5. Is the Zenith Z7 compatible with heavy-duty trucks?

Yes, the Z7 supports 24V commercial vehicles and buses, making it a versatile tool for both light-duty and heavy-duty applications.
