Launch Tech TreadMaster
Couldn't load pickup availability
Coming Soon! Pre-Order Now!
Call a Sales Rep Today to Learn More Here or Join The Waitlist Below 🔻

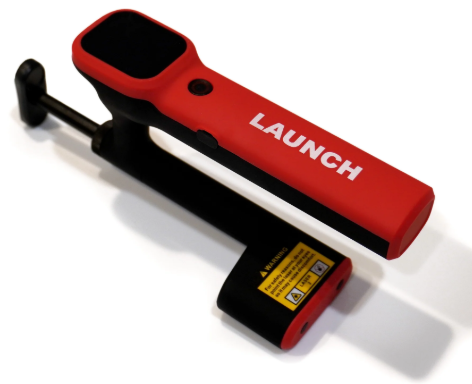

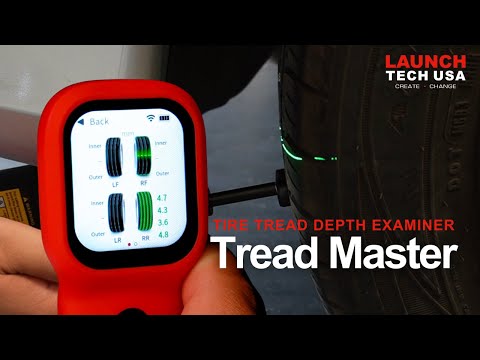

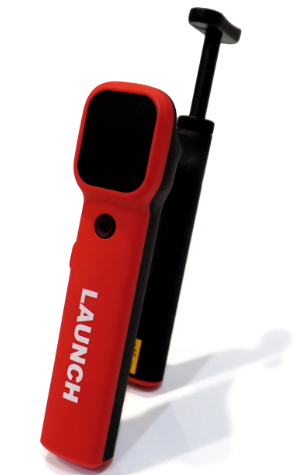

The Launch TreadMaster is an advanced laser tread depth gauge designed for precise and efficient tire inspections. With a measurement accuracy of 0.1 mm, this tool uses a 180-mm laser scanning width to assess groove depth and tread wear patterns in a single scan.
Its compact, wireless design allows for easy use across different vehicle types, regardless of chassis height. The built-in 1.7-inch display provides real-time measurement feedback, while Wi-Fi connectivity enables instant report generation and sharing. The device also supports single groove detection, making it ideal for specialized tread patterns.
Perfect for shops, fleet managers, and tire service centers, the TreadMaster helps ensure accurate tread assessments, improving safety and maintenance recommendations.
Key Features & Benefits
High-Precision Laser Scanning
✔︎ Measures tread depth with 0.1mm accuracy.
✔︎ Scans entire tire tread in a single pass.
Wide Compatibility
✔︎ 180mm (7.09 inches) scanning width supports various tire sizes.
✔︎ Works independently of chassis height.
Real-Time Display & Reports
✔︎ Shows instant measurement data on a 1.7-inch LCD screen.
✔︎ Generates professional inspection reports with maintenance recommendations.
Wireless Connectivity & Smart Functions
✔︎ Wi-Fi-enabled for scanning, data sharing, and cloud storage.
✔︎ Supports automatic software updates, language switching, and screen brightness adjustments.
Long Battery Life & Fast Charging
✔︎ 3000mAh battery supports extended use.
✔︎ USB Type-C fast charging with 5V/1A input.
Portable & Durable Design
✔︎ Compact 8.82 × 3.82 × 2.76-inch build for easy handling.
✔︎ Works in temperatures from 32°F to 113°F (0°C to 45°C).
Specifications
| Accuracy | 0.1mm |
| Laser Width | 7.09 inches (180mm) |
| CPU | ARM Cortex-A53 |
| RAM/ROM | 2GB / 8GB |
| Display | 1.7 inches, 240x280 pixels |
| Wi-Fi | 2.4GHz |
| Camera | 2 MP, 30 fps |
| Battery | 3000 mAh |
| Charging Port | Type C |
| Input | 5V / 1A |
| Working Temp | 32°F to 113°F (0°C to 45°C) |
| Storage Temp | -4°F to 140°F (-20°C to 60°C) |
| Size | 8.82 x 3.82 x 2.76 inches (224 x 97 x 70 mm) |
