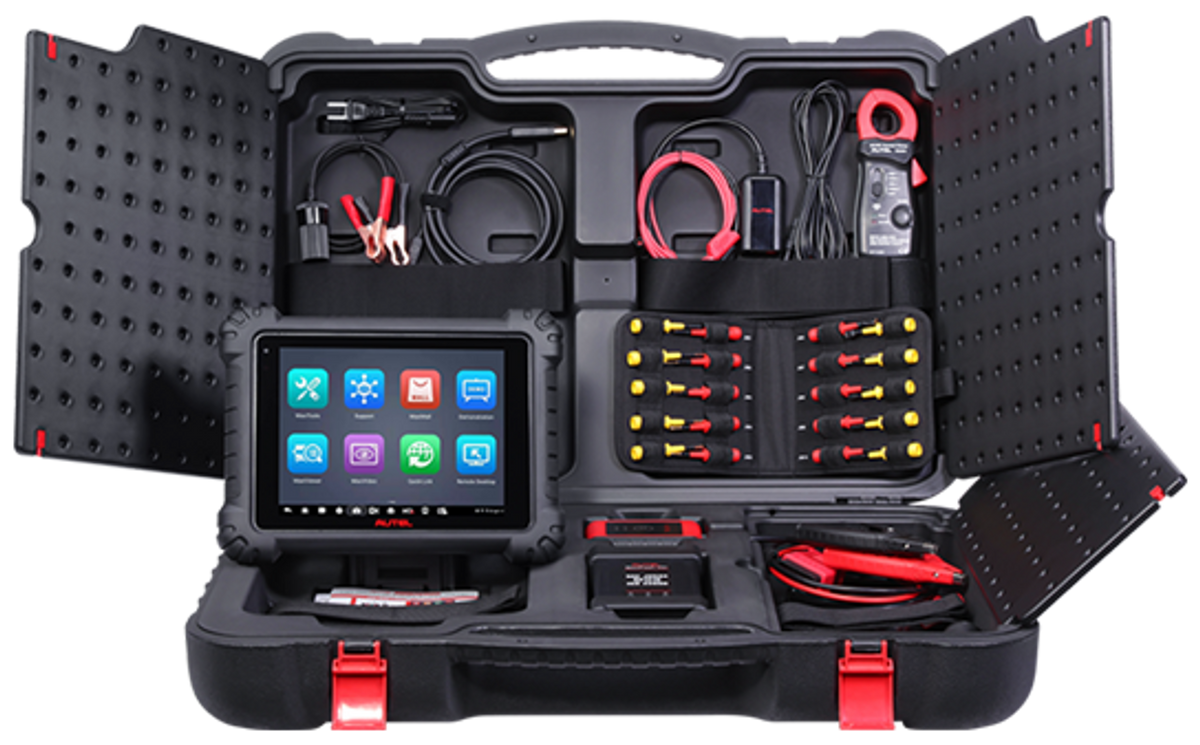

Autel MS909CV Tablet w/ wireless J2534 VCI

Only 3 left
SKU: AutelMS909CVTablet

Please Sign In For Price

Rendering loop-subscriptions

Need more information or help deciding on whether this tool is right for you? Get In Touch With A Sale Rep Today!

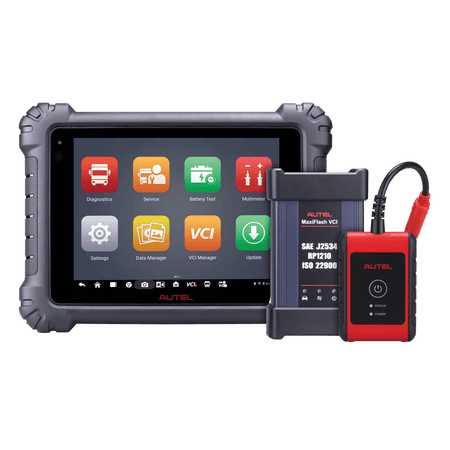

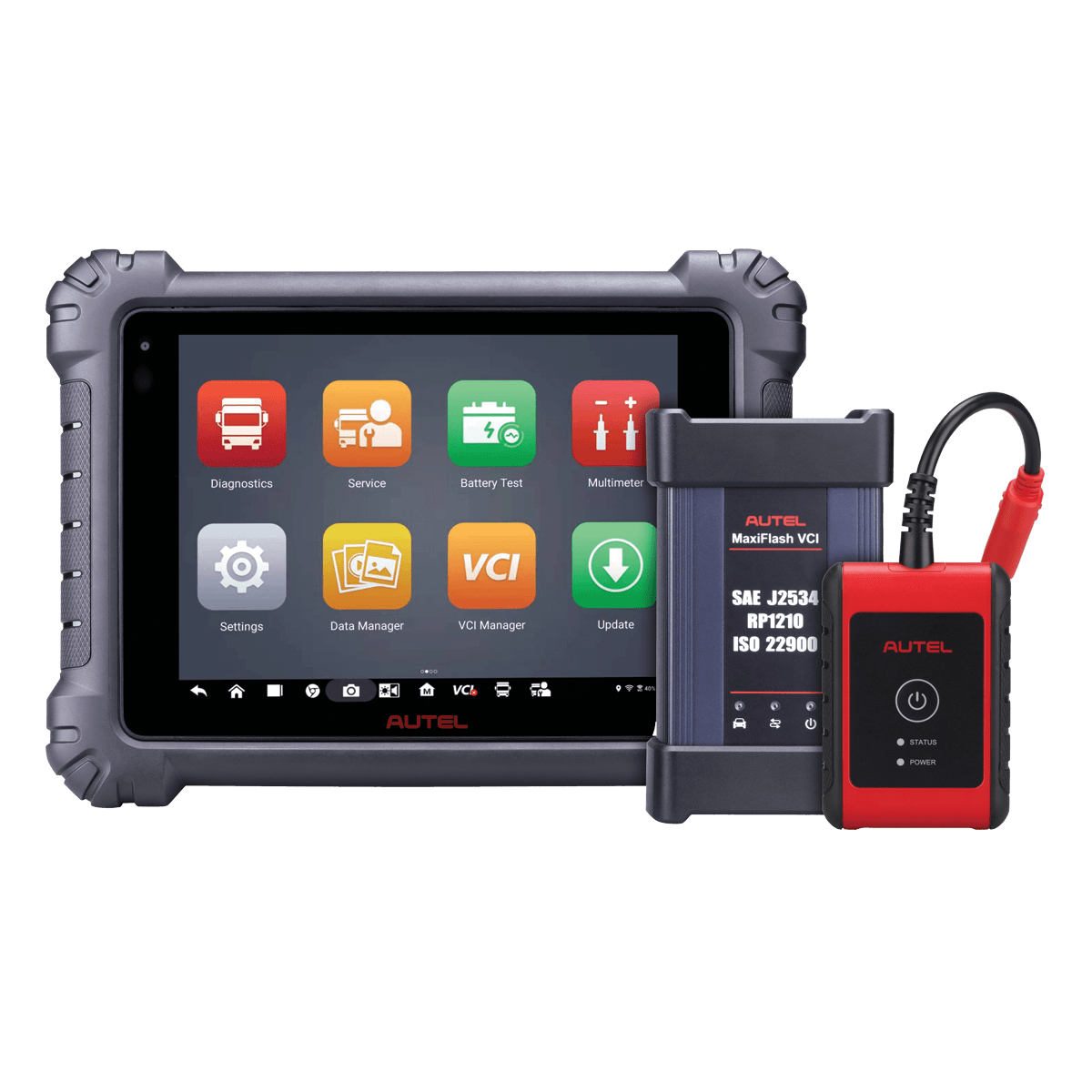

The Autel MaxiSYS MS909CV is an advanced diagnostic tablet designed for commercial vehicles, compatible with over 80 models of light, medium, and heavy-duty vehicles. It features a 9.7-inch wireless Android touchscreen and performs comprehensive diagnostics, including code reading/erasing and live data viewing/graphing. Equipped with Bluetooth-enabled vehicle communication interface, it comes with additional tools like the MaxiBAS B200 battery/starting/charging system tester and ADAS Calibration Software.

Key Features

Extensive Compatibility: Compatible with 80+ models of light, medium, and heavy-duty vehicles.

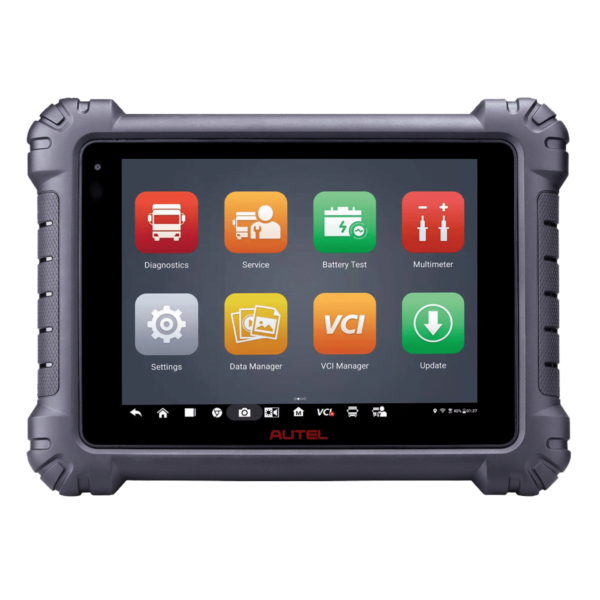

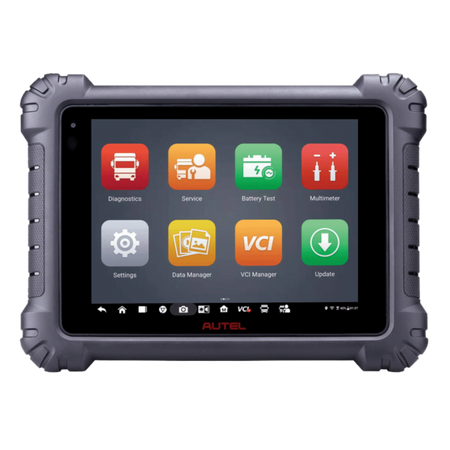

Wireless Touchscreen Tablet: 9.7-inch Android-based touchscreen tablet for intuitive operation.
Comprehensive Diagnostics: Capable of reading/erasing codes and viewing/graphing live data for thorough diagnostics.

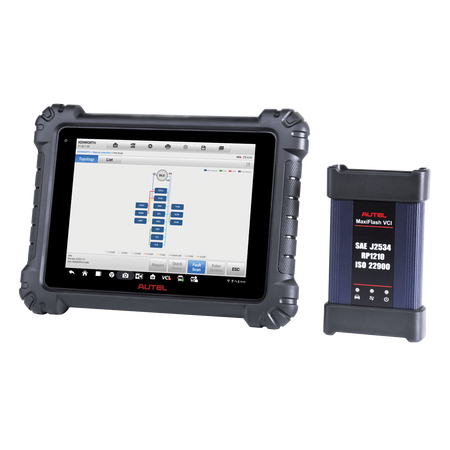

Bluetooth Connectivity: Includes Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru programmer for seamless communication.

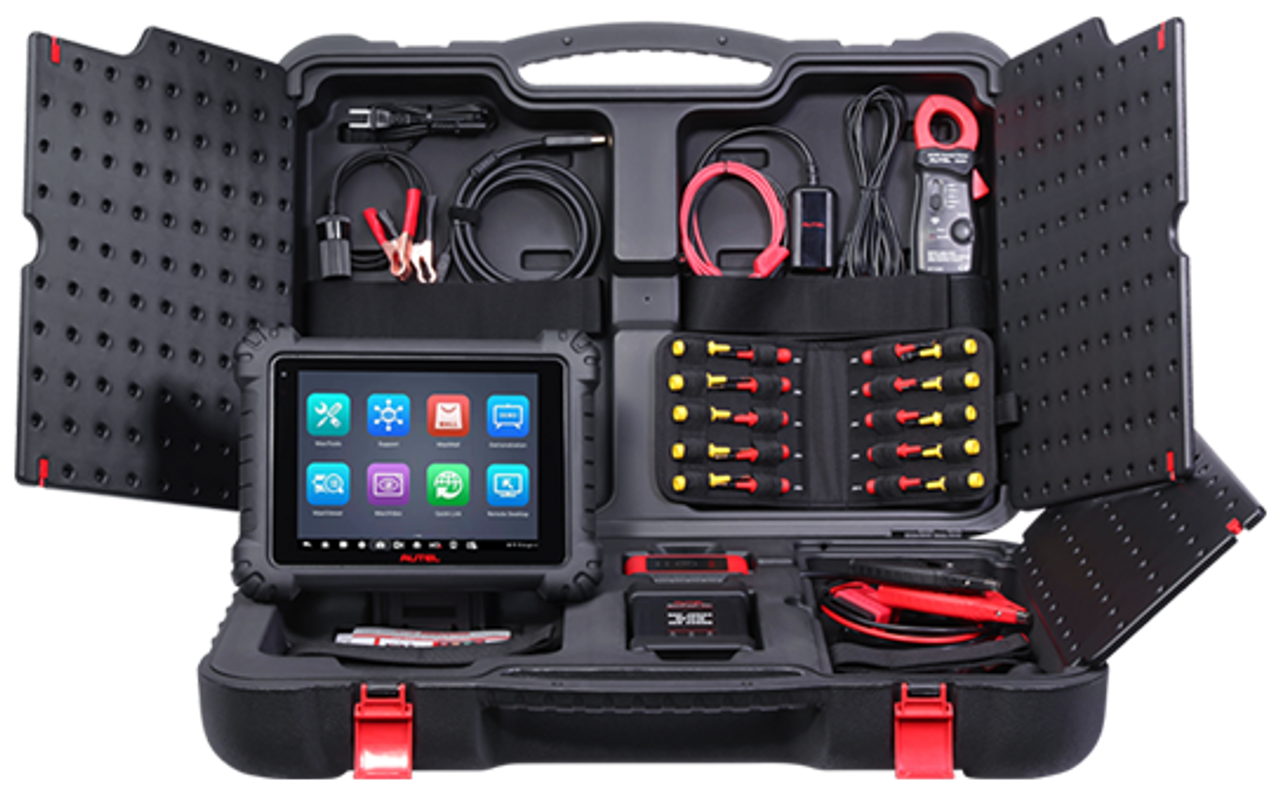

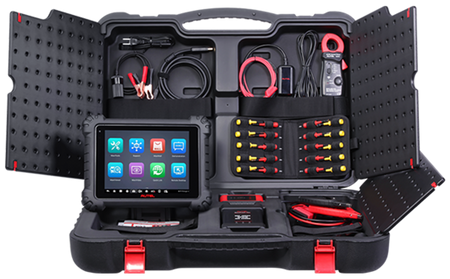

Additional Tools: Comes with MaxiBAS B200 battery/starting/charging system tester, alligator clamps, multimeter, and amp clamps for added functionality.
ADAS Calibration Software: Features ADAS Calibration Software for Class 3-5 and Class 6-8 vehicles with dynamically calibrated systems.
Warranty and Updates: Includes one-year limited warranty and a year of free software updates for continued support and reliability.

Operating System

Android 7.0ProcessorSamsung   Exynos 8895V octa-core

Processor

(2.3GHz Quad-core Mongoose + 1.7GHz   Quad-core A53)

Memory

4GB RAM & 128GB On-board Memory

Display

9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen

Connectivity

WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (TWO USB HOST Type A, ONE USB mini   device)
HDMI 2.0
SD Card (Support up to 256GB)

Camera

Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output

Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jac

Power and Battery

15000mAH   3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the   temperature between 0°C and 45°C

Input Voltage

12V/3A Adapter

Operating Temperature

0   to 50°C (32 to 122°F)

Storage Temperature

-20   to 60°C (-4 to 140°F)

Dimensions(W x H x D)

304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")

Weight

1.66kg   (3.66 lb.)

Protocols

DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708,   SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
