Autel MAXIVIDEO MV400-5.5

Only 2 left
SKU: AutelMV40055

Please Sign In For Price

Rendering loop-subscriptions

Need more information or help deciding on whether this tool is right for you? Get In Touch With A Sale Rep Today!

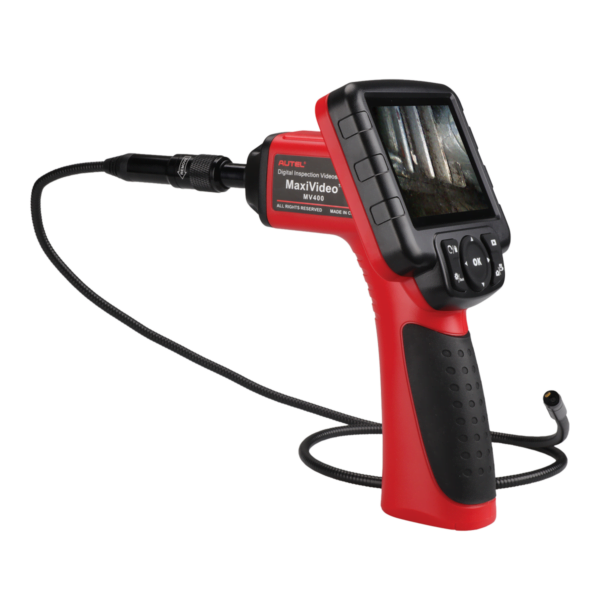

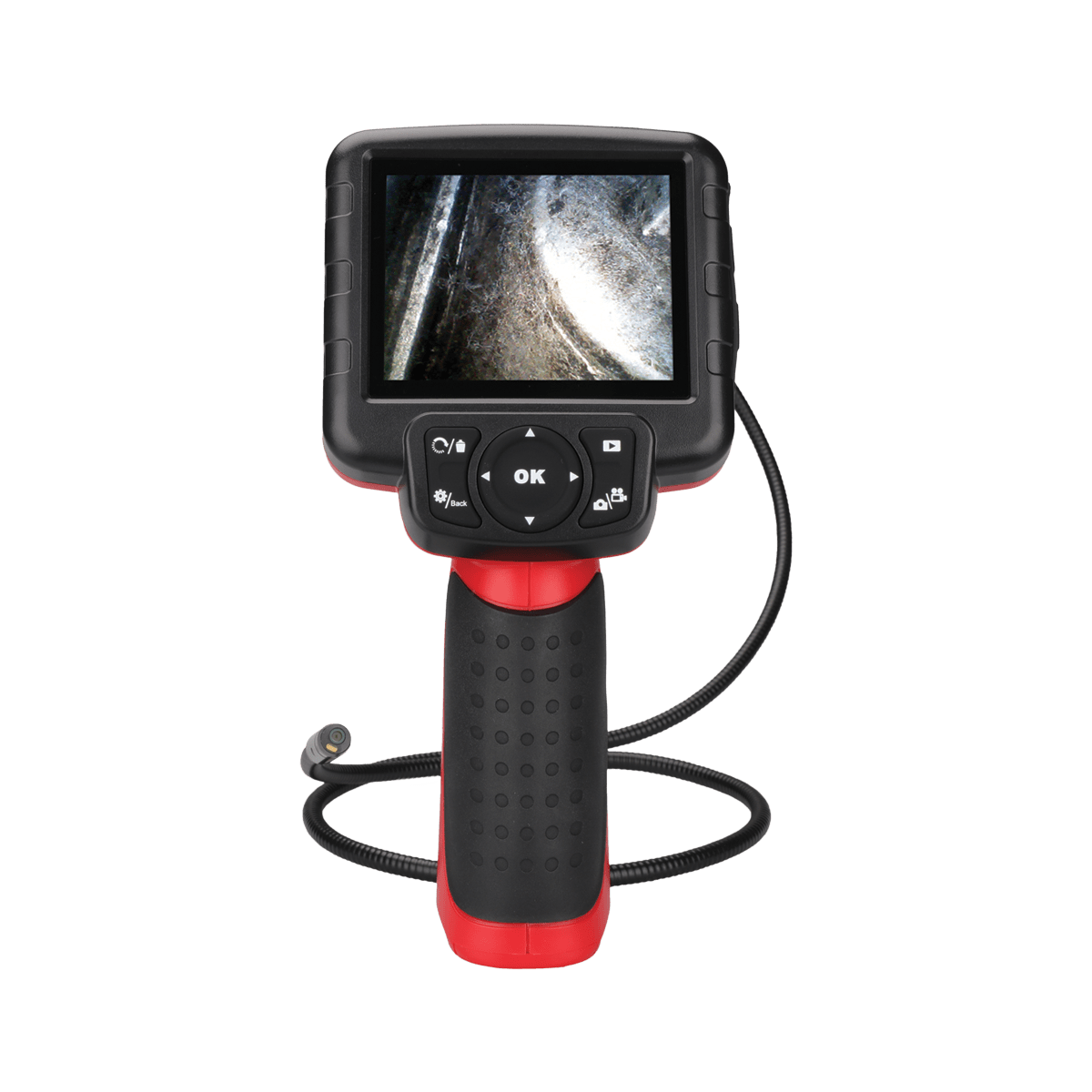

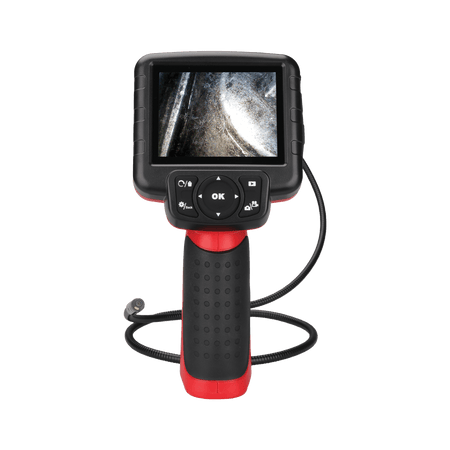

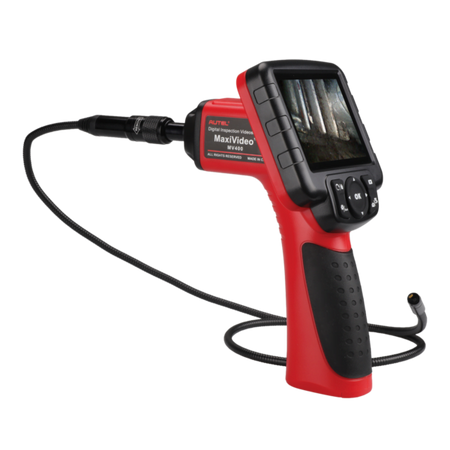

The Autel MV400 digital videoscope is a versatile inspection tool equipped with a 3.5" color LCD screen and a flexible, watertight, 40-inch shaft featuring a 5.5mm imager head with LED lighting. It captures high-resolution images and videos, offers a wide viewing angle, and includes features like 5x digital zoom and screen inversion for easy navigation. The device is powered by a rechargeable Li-ion battery supporting 3-4 hours of continuous use. It is designed with a durable, oil and scratch-resistant lens and includes a one-year limited warranty.

Tool Specifications

Recommended Use


Optimal Viewing Distance 1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head 3/8" to 12" (0.95cm to 30cm) with 5.5mm diameter imager head
Image Capture JPG images (640×480) AVI videos (320 x 240)
Screen Type Display 3.5" TFT LCD
Display Resolution 320 x 240
Power Supply Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh)
Tested Battery Life 3-4 hours of continuous use
Recording Medium Micro SD card (Micro SD card is optional and not included)
Imager Head 8.5mm (0.33") is standard and 5.5mm (0.22") is optional
Waterproof Imager head and cable to 3m (10‘)
Additional Ports
  • USB
  • Video out (TV-out) port
    Operating Temp. Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C)
    Storage Temp. -4°F to 158°F (-20°C to 70°C)
    Dimensions (WxHxD) 199 x 100 x 178mm (7.83" x 3.94" x 7.0")
    Video Output RCA
    TV Out
    • NTSC
    • PAL


      • 3.5" Color Display with 5.5mm Imager Head
      • Record/Playback High Resolution Images & Videos
      • Images 640x480, Videos 320x240
      • Bright LED Light for Inspecting Confined Areas
      • FREE Lifetime Software (lifetime of tool) & 1Yr Warranty

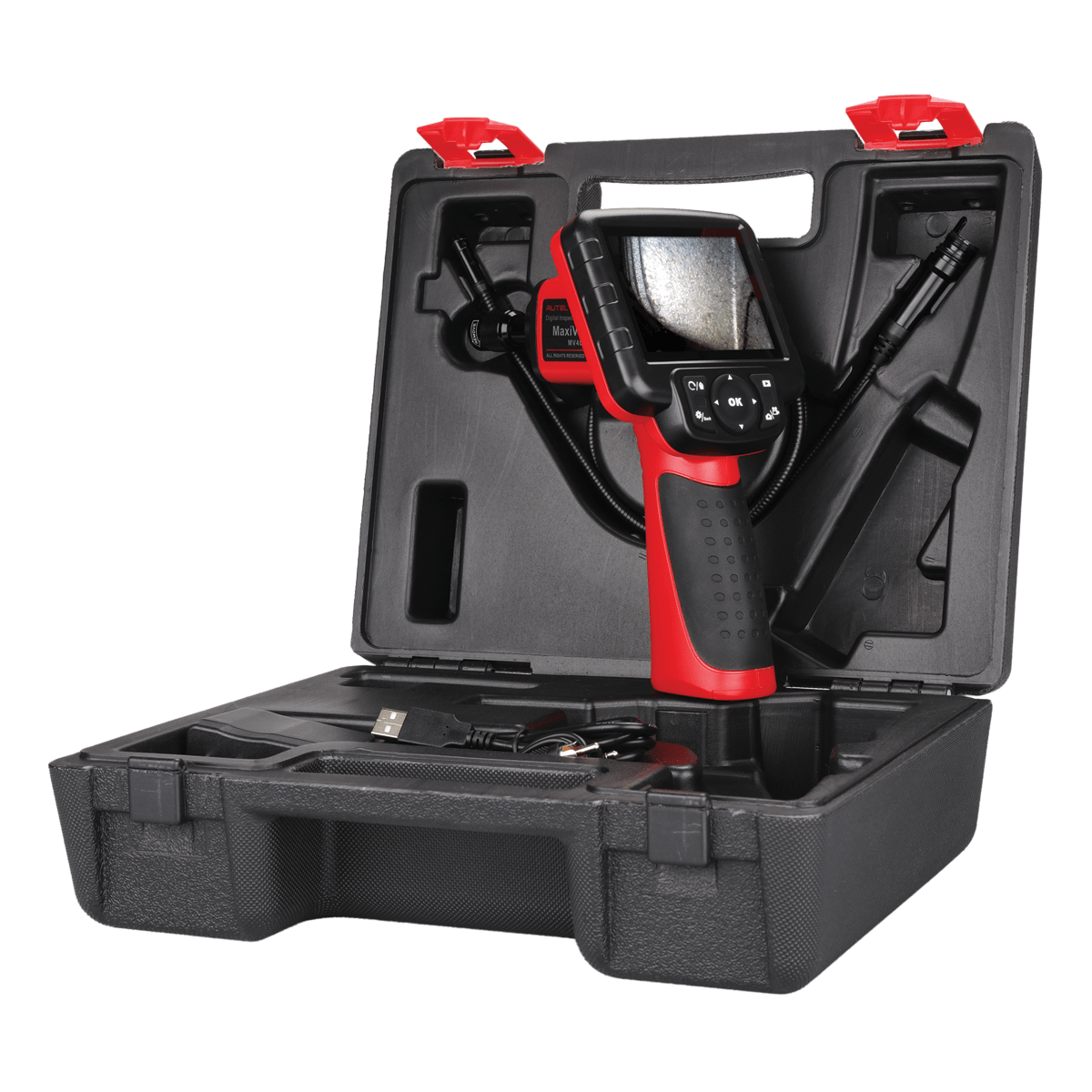

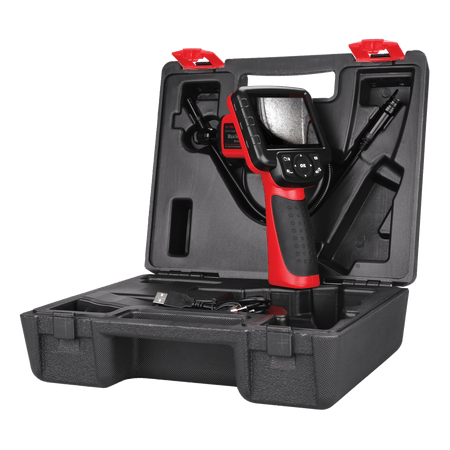

      • Includes Magnet, Mirror & Hook Attachments
      • 5x Digital Zoom/View As Close As 1"
      • 1m (3.28-Ft) Imager Head & Cable Reach
      • Waterproof Head & Cable up to 3m (10-Ft)
      • On-Screen Horizontal/ Vertical Reverse
      • Optimal Viewing Distance: 0.95-30cm/ 3/8-12"
      • Upload Files to PC via Mini USB Cable
      • Save Files with Micro SD Card (32G max. not included)
      • Built-In, Rechargeable Lithium-ion Battery
