AUTEL Maxicheck MX900
Please Sign In For Price
Need more information or help deciding on whether this tool is right for you? Get In Touch With A Sale Rep Today!

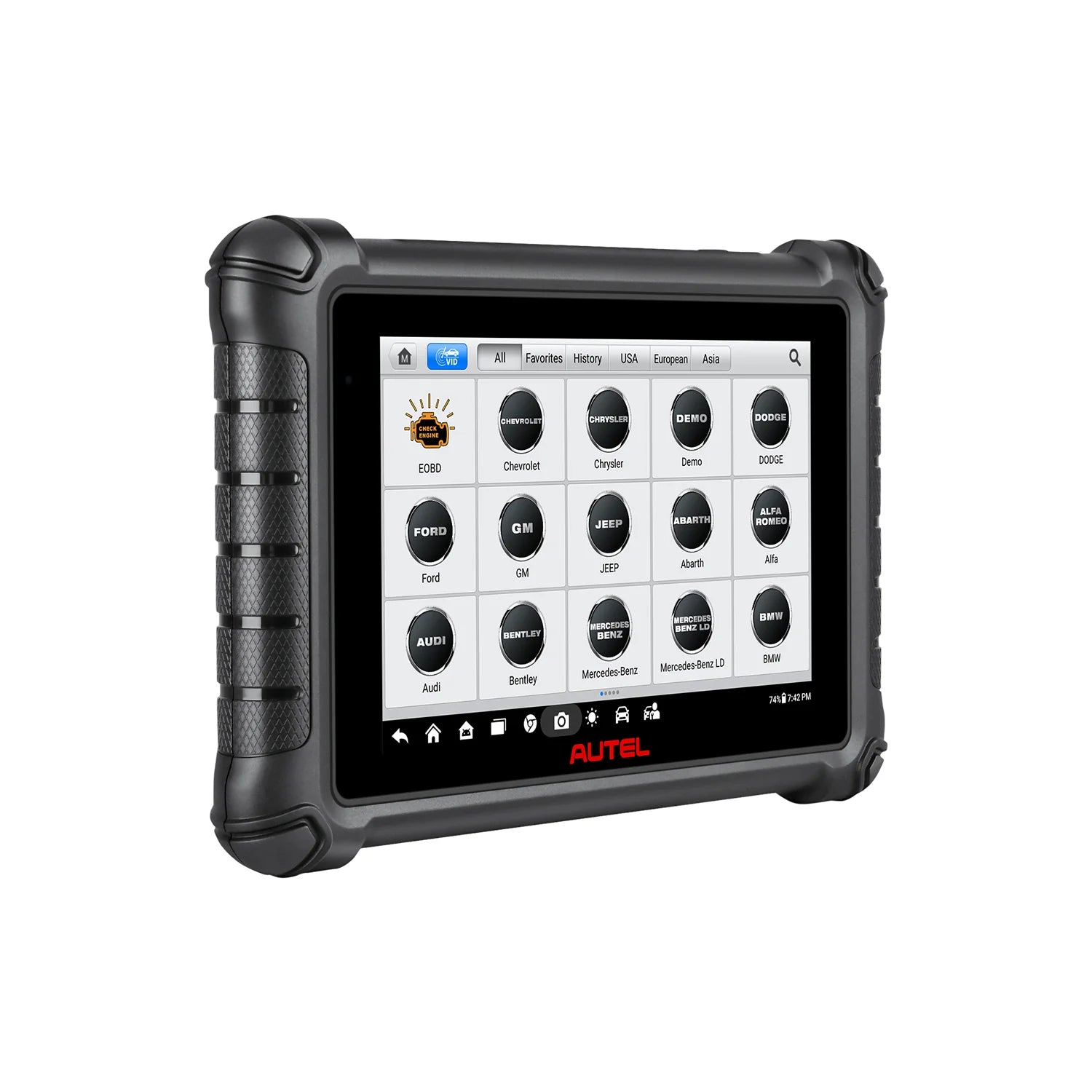

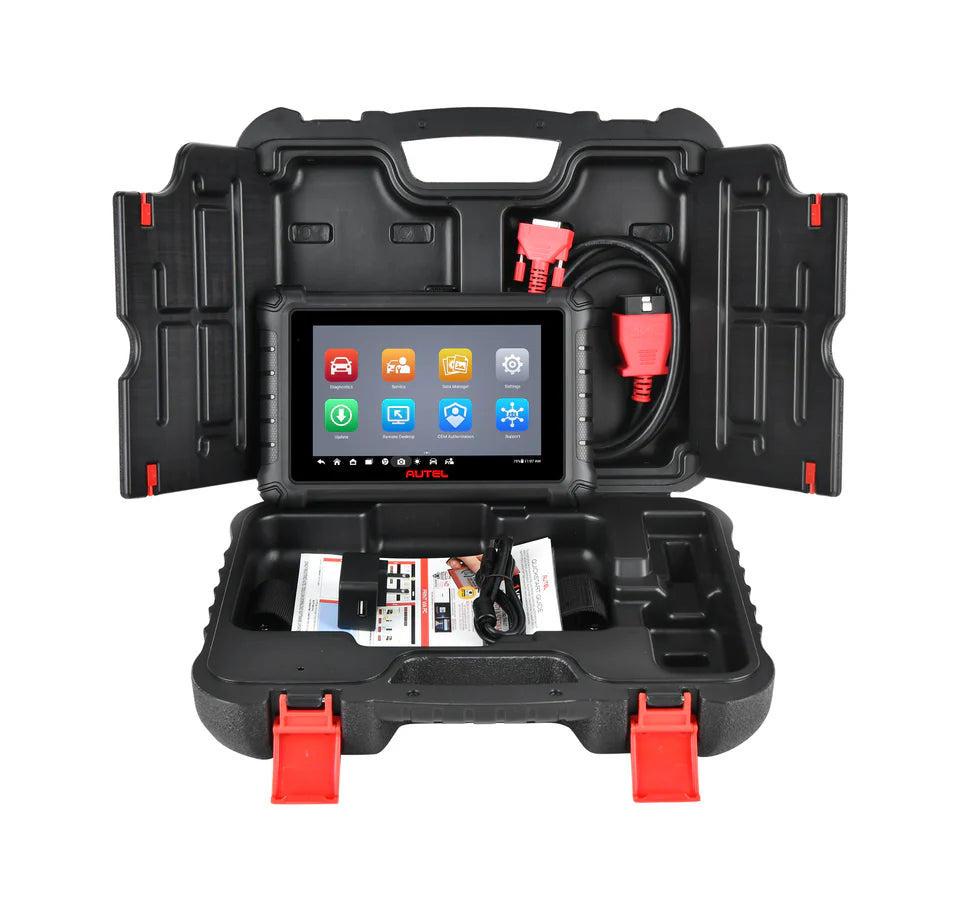

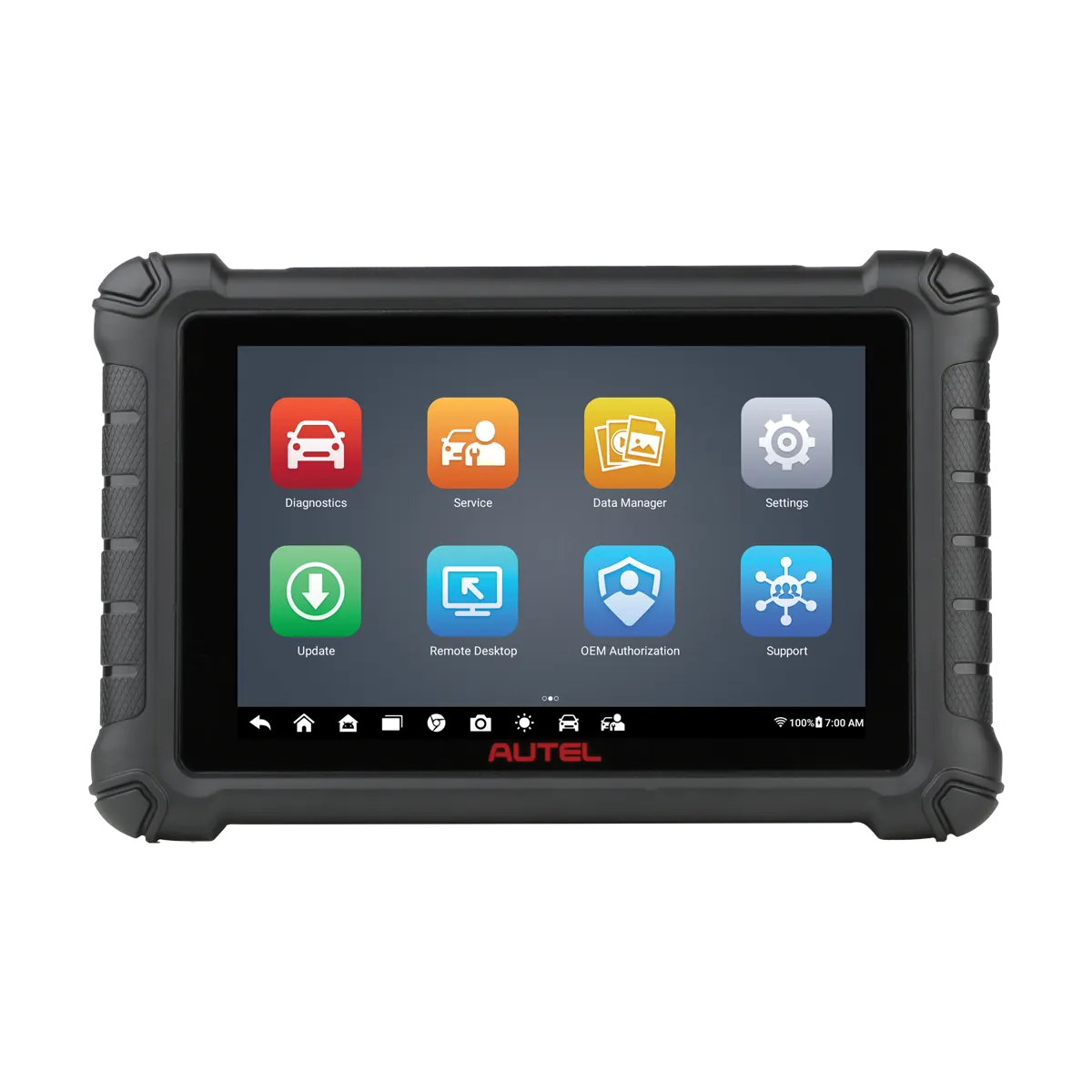

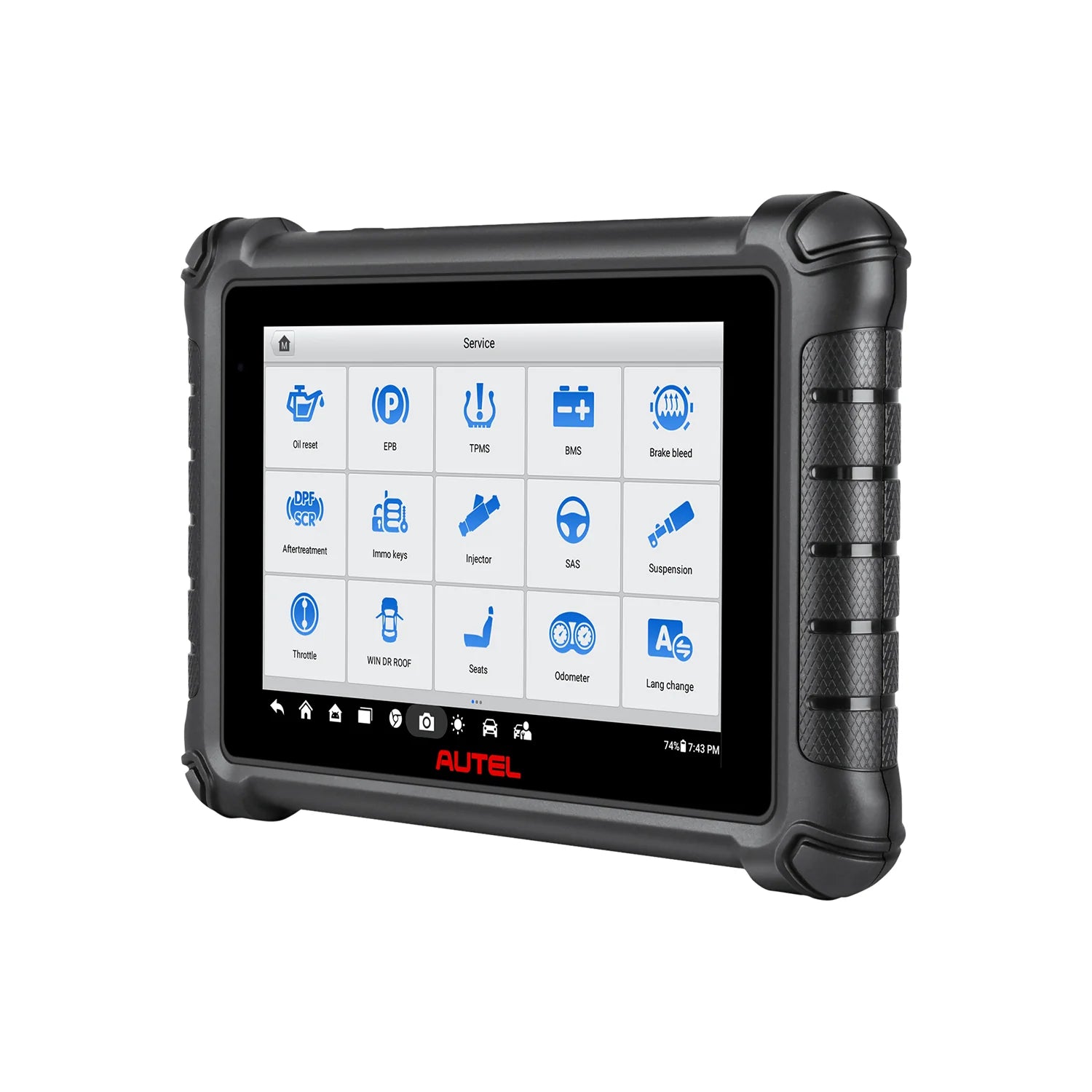

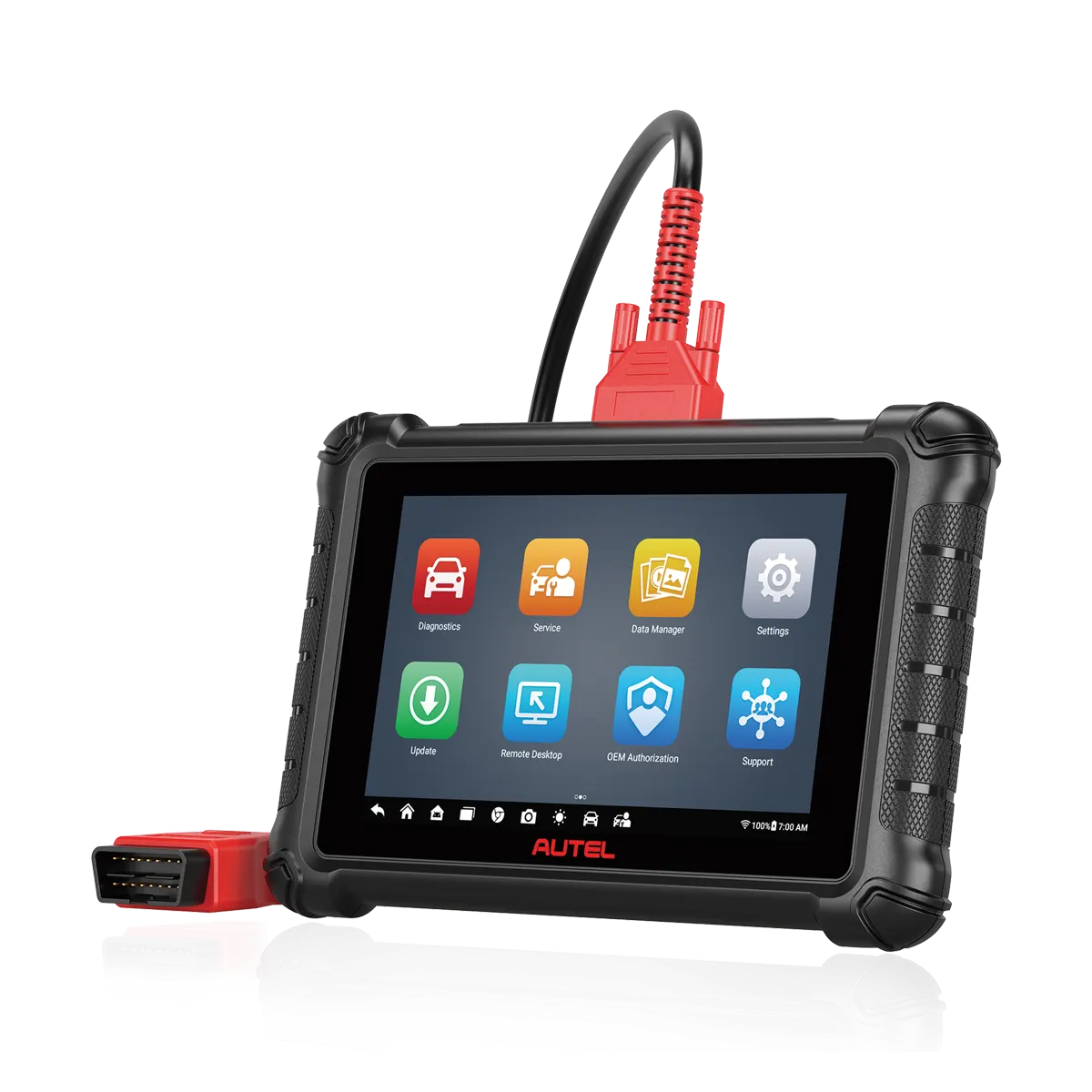

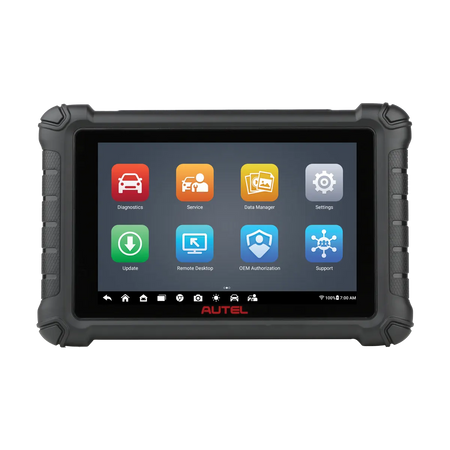

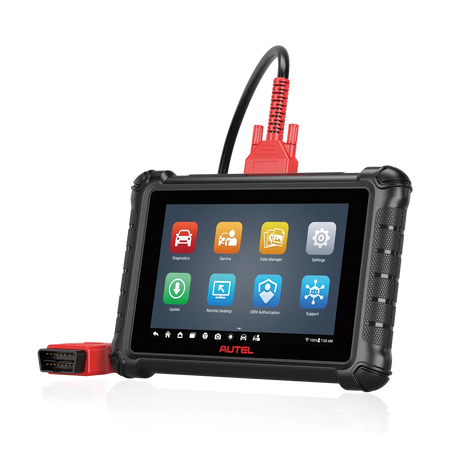

Introducing the MaxiCheck MX900, an advanced 8-inch touchscreen diagnostic and service tablet engineered for exceptional performance. This robust corded device offers a comprehensive suite of features, including code reading and clearing, Freeze Frame viewing, Live Data display with graphing capabilities, and bi-directional Active Tests and Special Functions. Beyond diagnostics, the MX900 serves as a versatile service tool, providing over 40 maintenance tasks such as Brake Bleed, Oil and Service lights resets, Battery registration, DPF regen, Electronic Parking Brake, and Steering Angle resets. With its 1.8 GHz processor and Android 11 platform, the MX900 ensures swift and efficient operation. Plus, it includes one year of software updates and a limited warranty, delivering reliability and peace of mind.
Features
- 8" corded Wi-Fi-enabled touchscreen tablet
- Compatible with U.S., Asian, and European vehicles, 1996 and newer
- Read and erase codes, view and graph Live Data, view Freeze Frame data
- Perform bi-directional Active Tests and Special Functions
- Extensive, 40-plus Service Menu
- Android 11OS, 1.8 Ghz processor, and 7 hours of continuous battery life
- Update firmware and coverage software wirelessly
- One Year Limited Warranty
Specifications
| Operating System | Android 11 |
| Processor | Quad core Processor(1.8GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD capacitive touchscreen with 1280x800 resolution |
| Rear Camera | 8 MP |
| Connectivity | USB Type-C USB 2.0 Wi-Fi Mini SD card (supports up to 64GB) |
| Audio Input/Output | Input: N/A Output: buzzer |
| Power and Battery | 3.7 V/7700mAh lithium-polymer battery Charges via 5 VDC power supply |
| Battery Charging Input | 5V/3 A |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60°C (14 to 140°F) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |
