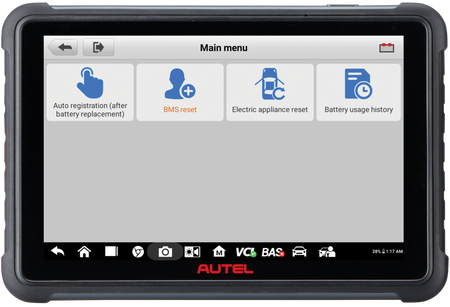

Autel MaxiBAS BT609 7 inch wireless Battery Diag Tablet

Only 3 left

Please Sign In For Price

Rendering loop-subscriptions

Need more information or help deciding on whether this tool is right for you? Get In Touch With A Sale Rep Today!

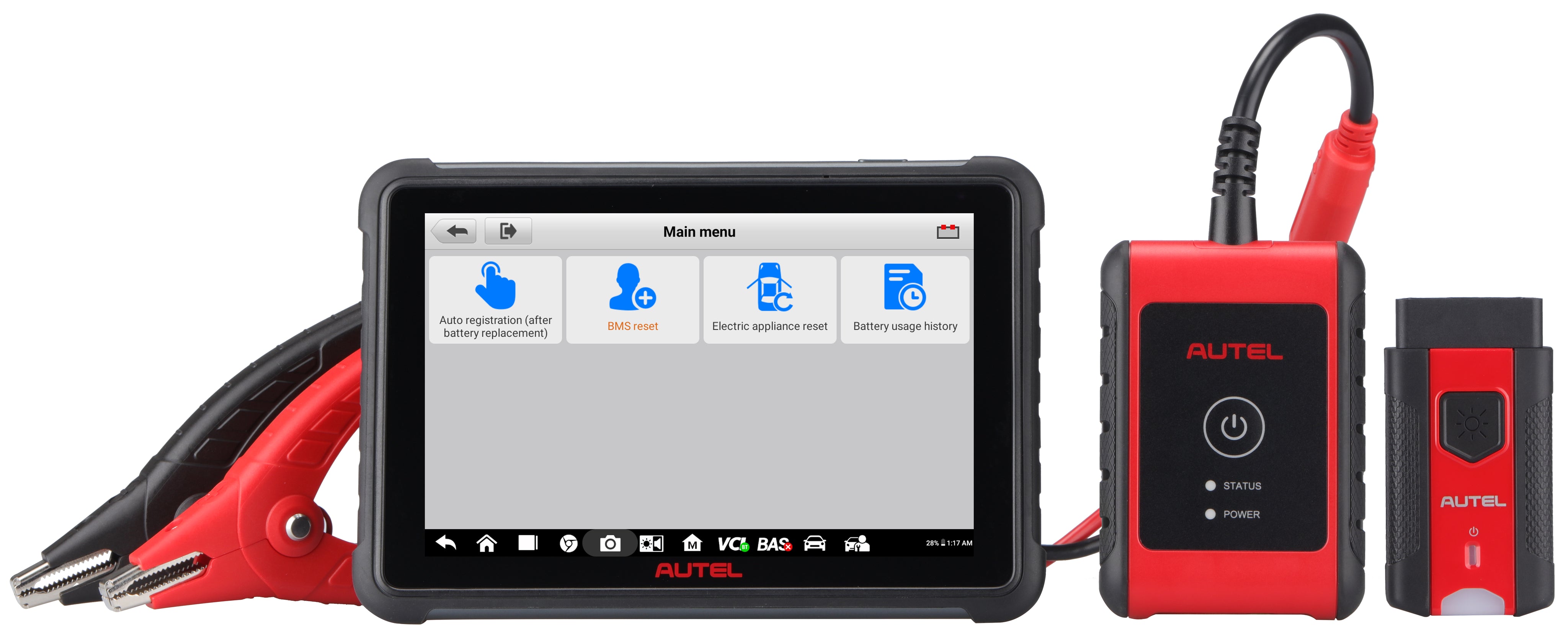

The MaxiBAS BT609 wireless battery and diagnostics system revolutionizes battery analysis with its cutting-edge Adaptive Conductance technology. This advanced method ensures a precise assessment of the battery's cold cranking ability and reserve capacity, providing invaluable insights into its true health.

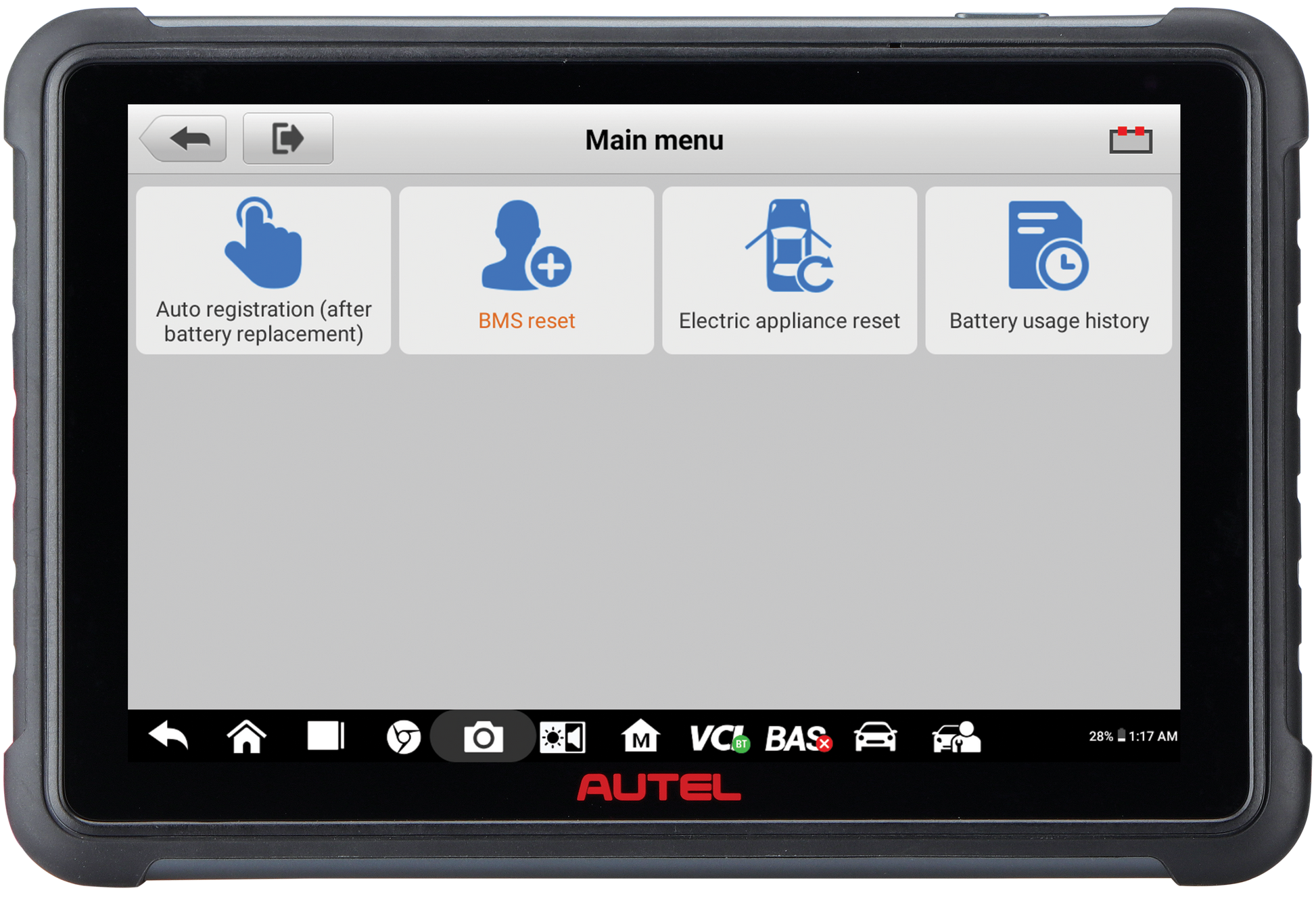

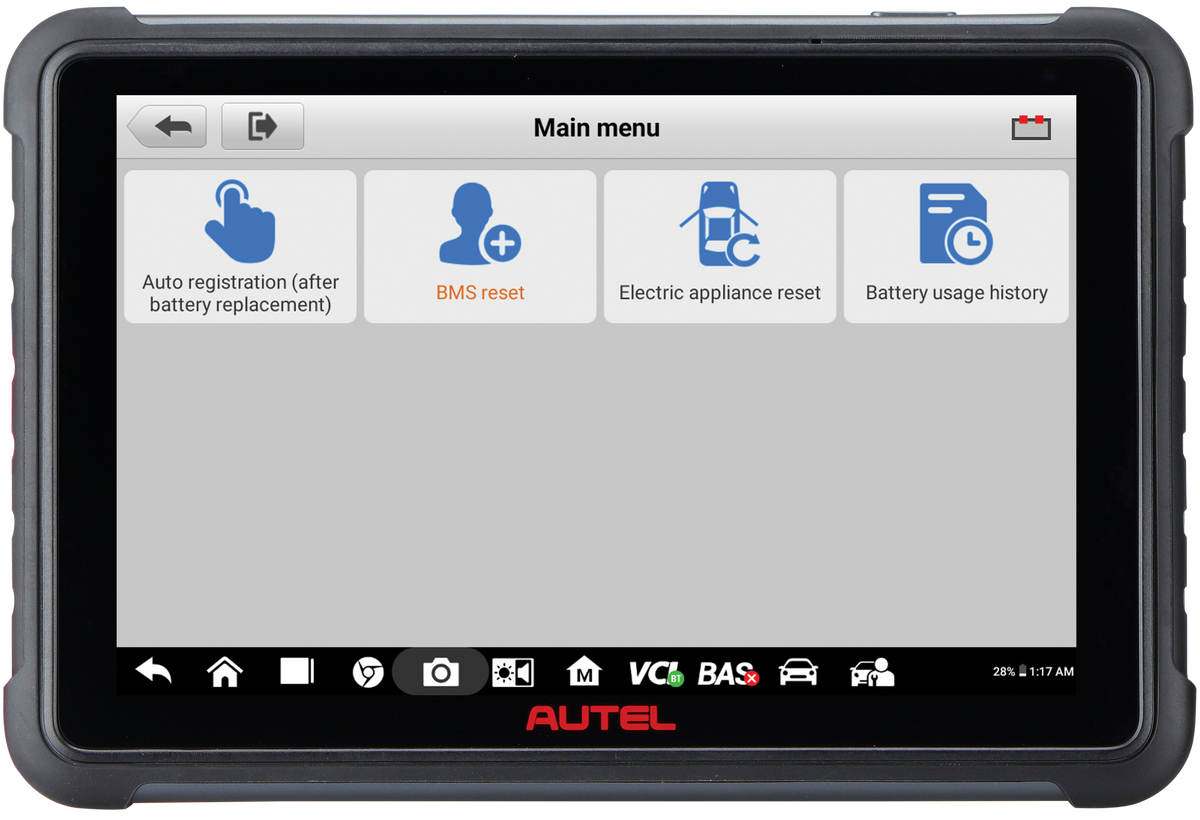

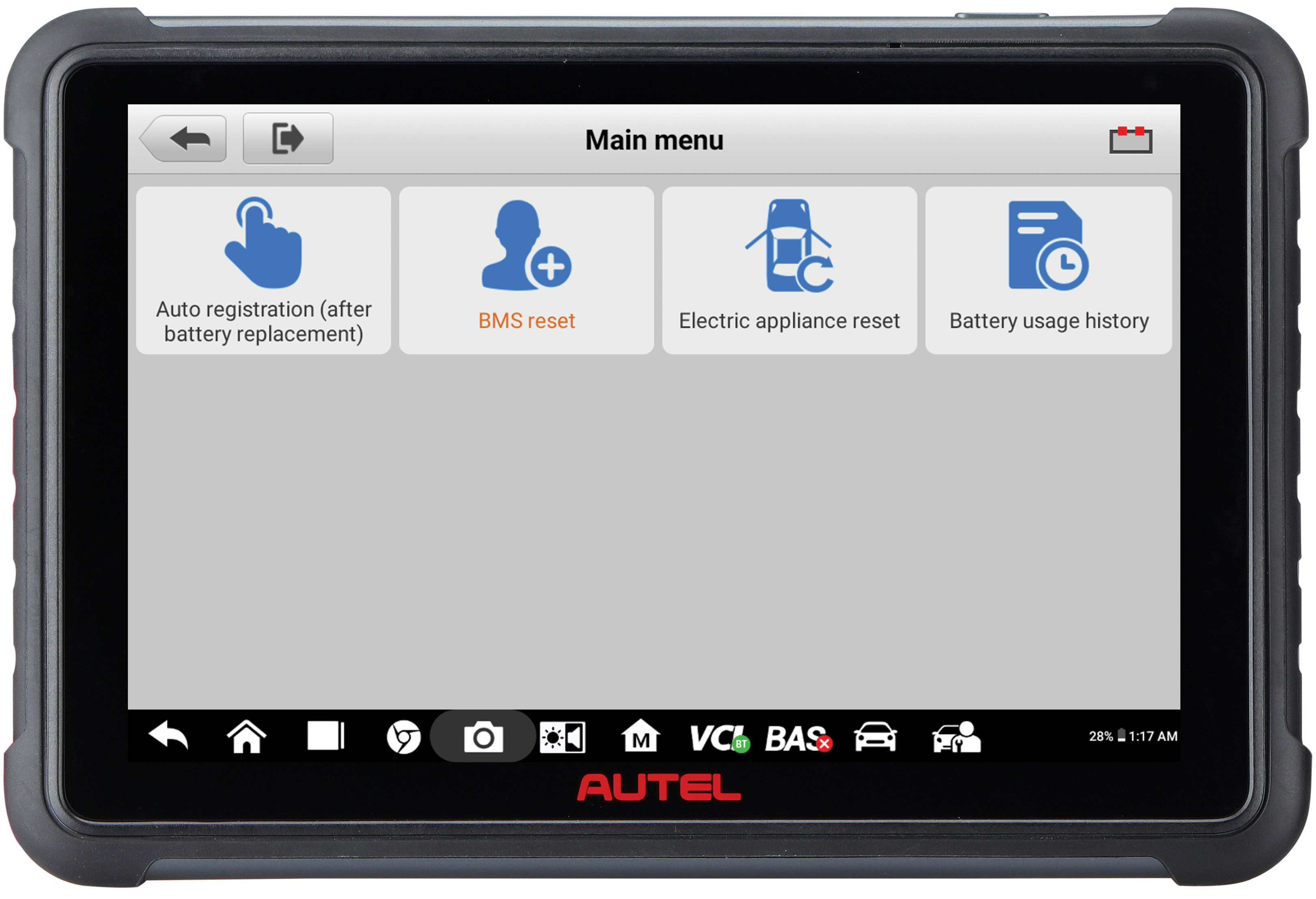

Equipped with a 7-inch Android touchscreen tablet, the BT609 offers quick access to the battery's health status, allowing for seamless registration of new batteries and comprehensive diagnostics of the battery and electrical system. With AutoVIN technology, vehicle and battery information is swiftly identified, while graphic instructions simplify battery positioning and testing.

Key Features:

- Support for in-vehicle and out-of-vehicle testing of passenger vehicle batteries
- Test 6- and 12-volt batteries ranging from 100 to 3000 CCA
- Test 12- and 24-volt cranking/charging systems with precision
- Compatible with a wide range of battery types, including Flooded, AGM, AGM Spiral, EFB, and GEL
- Comprehensive compatibility with industry standards such as CCA, CA, SAE, EN, IEC, DIN, JIS, and MCA
- Effortlessly display battery specifications through barcode scanning or VIN entry
- Clear illustration guides facilitate accurate battery positioning and testing
- Read and erase codes, as well as view Live Data, across all available vehicle systems
- Convenient support for common maintenance services

With its intuitive interface and comprehensive features, the MaxiBAS BT609 is your ultimate companion for efficient battery analysis and diagnostics.


Operating System Android 9.0
Memory: 2GB RAM & 64GB On-board Memory
Display: 7.0 inch TFT-LCD with 1280 x 800 resolution & capacitive touch screen
  • Wi-Fi (IEEE 802.11 a/b/g/n/ac 1×1)
  • BT 5.0+EDR+BLE
  • USB 2.0 (1 USB HOST + 1 USB OTG)
  • Micro SD Card (Support up to 128GB)

Ambient Light Sensor (ALS)

Power and Battery:
  • 5800 mAh 3.85 V lithium-polymer battery
  • Charging via 5 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage:

5V / 2A Adapter

Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD): 197 mm (7.75″) x 135 mm (5.31″) x 14 mm (0.55″)
Net Weight: 445 g (0.98 lb.)
