Autel IM608PROIIKPA Key Programming Bundle

In stock
SKU: AutelIM608PRO2Tablet

Please Sign In For Price

Rendering loop-subscriptions

Need more information or help deciding on whether this tool is right for you? Get In Touch With A Sale Rep Today!

The Autel IM608 Pro II is a state-of-the-art tool for professional locksmiths and auto mechanics, combining advanced key programming and ECU coding capabilities. It features the latest Android OS, specialized programmers for keys and ECUs, and offers comprehensive IMMO functions. With OE-level diagnostics and over 40 service functions, it's designed for extensive vehicle coverage, including FCA certified access, enhancing diagnostics, key programming, and vehicle performance optimization.


  • Smart Mode for guided and automated key learning
  • Expert Mode for advanced key learning
  • Read PIN/CS (all keys lost) , key generation, key learning, remote learning
  • IMMO ECU reset/adaptation, refresh/coding
  • Transpronder read/write, EEPROM/MCU read/write
  • Advanced, OE-Level Diagnostics for more than 80 U.S., Asian, and European vehicles.
  • Extensive maintenance/services menu, including direct-access to EPB, DPF, SAS, Oil Reset, and BMS functions
  • Equipped with Autel Remote Expert capability. Connect remotely with experienced experts ready to assist you with any diagnostic problem.
  • All maintenance reports stored in the cloud, allowing you to view device and test records anytime, anywhere
  • Qualcomm Octa-core Processor (2.2GHz) and 128GB Storage Memory
  • 10.1-inch LCD touchscreen with 1920 x 1200 resolution
  • Android 10 Operating System for fast boot-up and multitasking

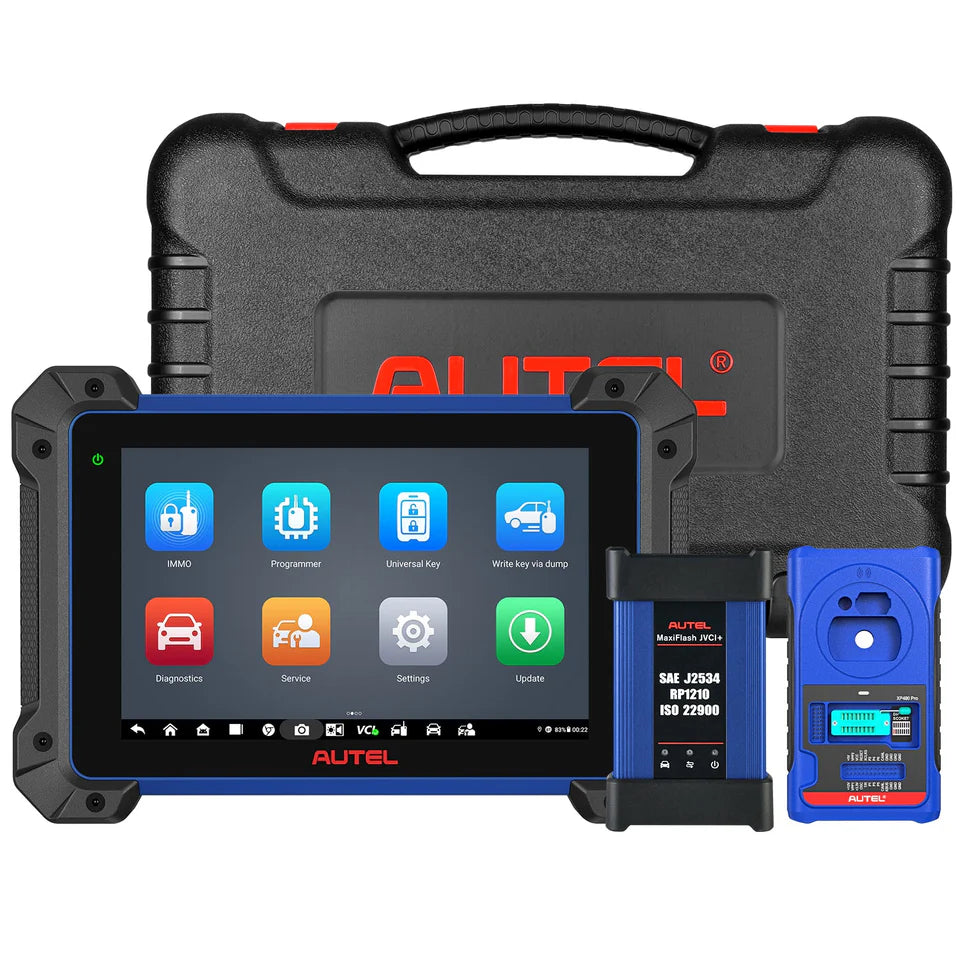

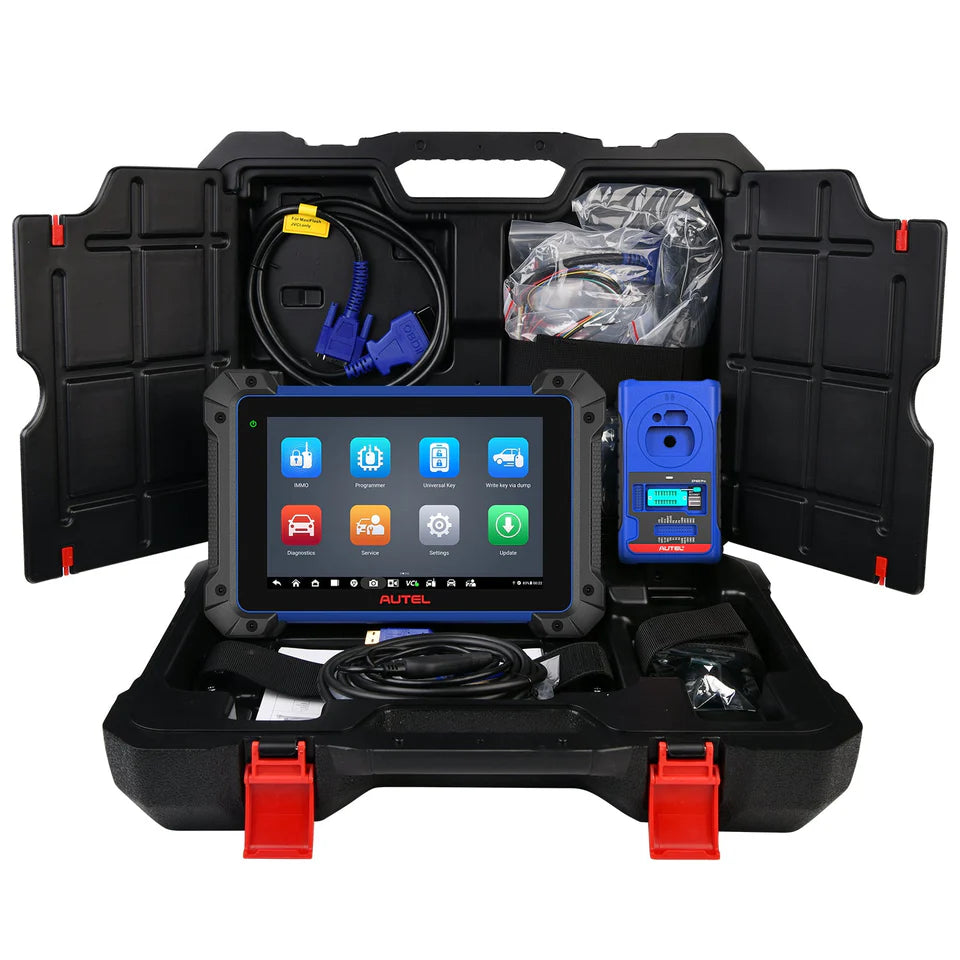

Package List

  • MaxiIM IM608S II/IM608Pro II Tablet
  • XP400 Pro Key Programmer
  • MaxiFlash JVCI+
  • Connection Cables
  • USB Adapter
  • Carrying Case


Operating System

Android 10

Processor Qualcomm SDM660 Octa-core Processor (2.2GHz )
Memory: 4GB RAM &128GB On-board Memory
Display: 10.1-inch LED capacitive touchscreen with 1920x1200 resolution

Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 64GB); HDMI


Light sensor for brightness auto adjust

Power and Battery:

15000 mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply

Input Voltage:

12 V (9-24 V)

Power Consumption:

6.5 W

Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD): 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Net Weight: NW: 1.58 kg (3.48 lb.)
Supported Automotive Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
