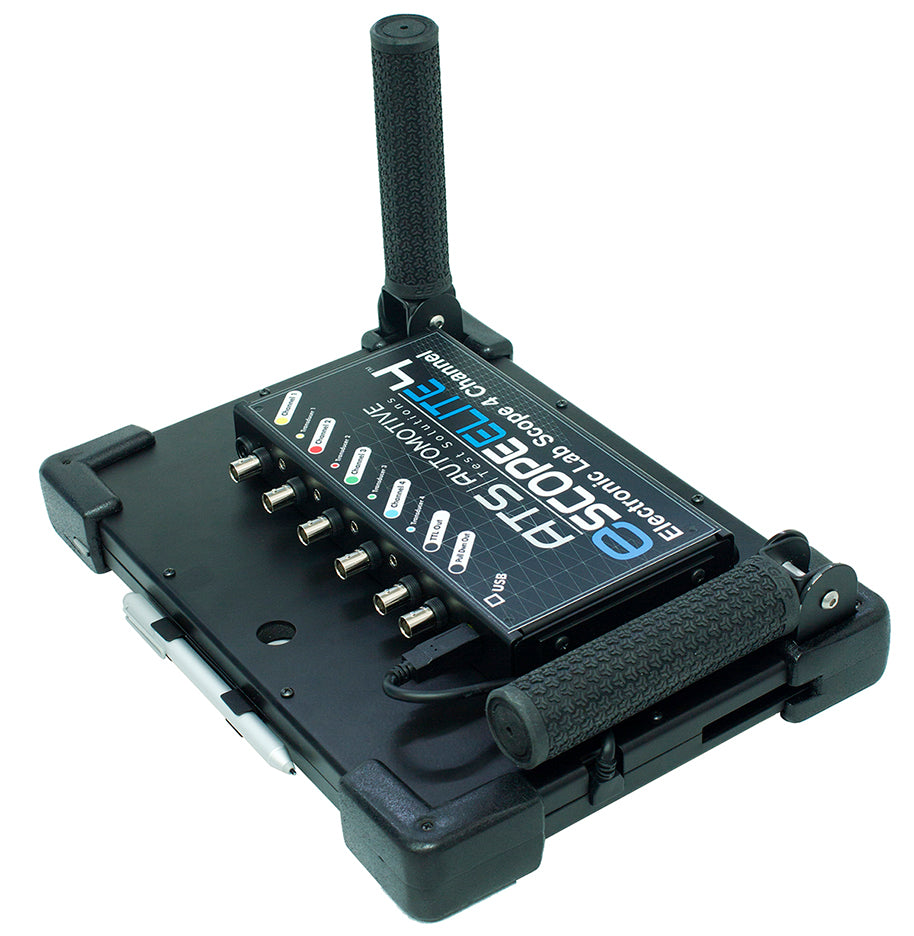

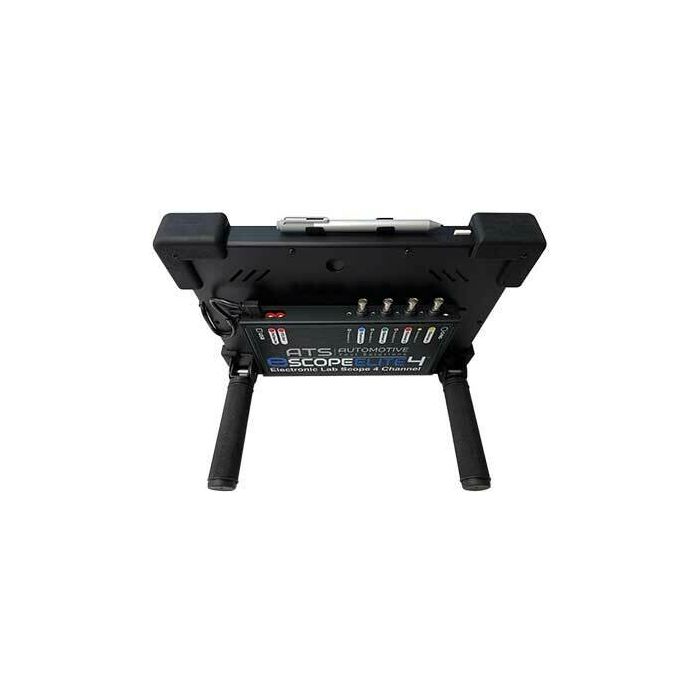

ATS eSCOPE ELITE 4 with Surface Pro Table

Only 1 left
SKU: ATSESCOPEELITE4TAB

Please Sign In For Price

Rendering loop-subscriptions

Need more information or help deciding on whether this tool is right for you? Get In Touch With A Sale Rep Today!

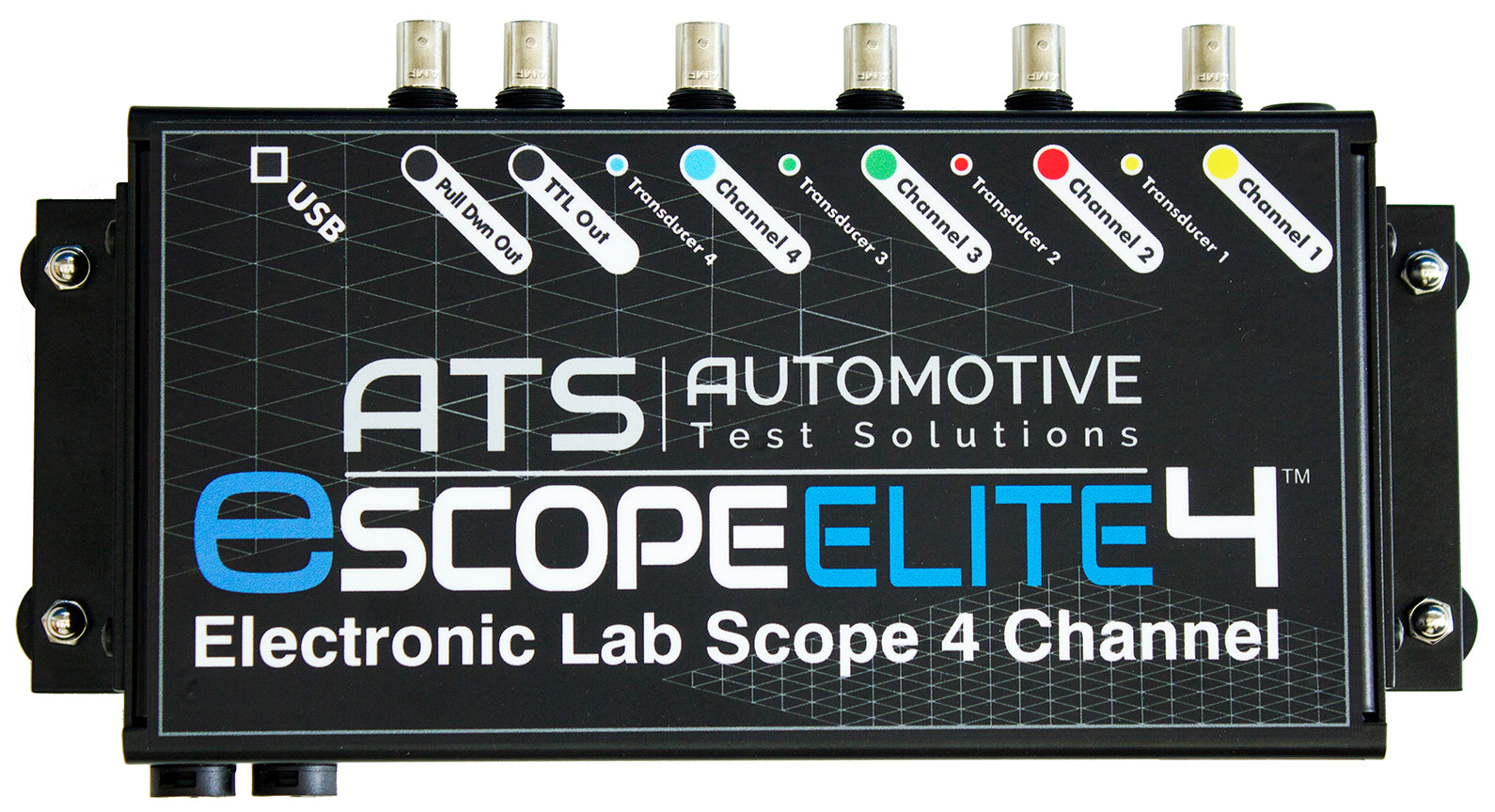

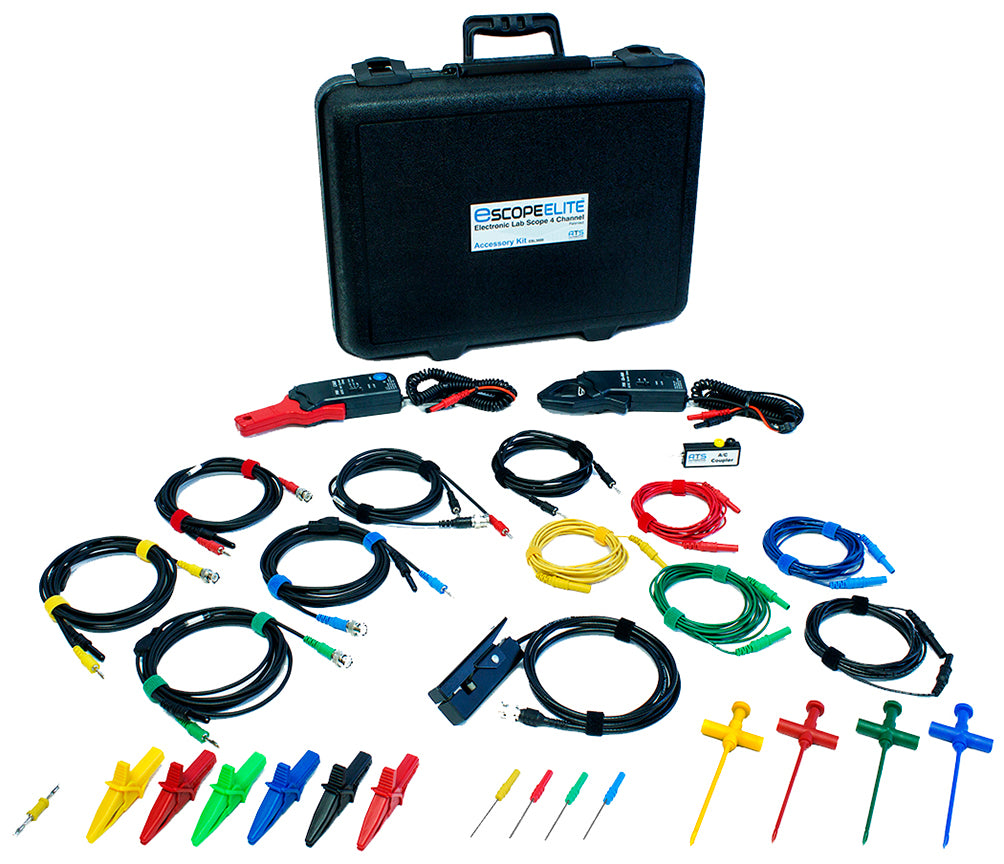

Experience the eSCOPE ELITE4, a sophisticated 16-bit, 4-channel dual time-based oscilloscope bundled with a complete accessory kit:

Highlighted Features:

  • Data Integrity: ATS' circular buffer system ensures seamless data capture without any gaps, providing a comprehensive view of vehicle events.
  • Precision Waveforms: Enjoy accurate and clean signal representation, eliminating the need for masking filters.
  • Dual Time Base: Simultaneously display two frequencies on one screen with separate triggers, akin to having two scopes in one.
  • Pull Down Circuit: Control circuits like ignition coils and fuel injectors with a controlled pulse that sinks power from vehicle circuits to ground.
  • TTL Output: Output a 0-5V square wave signal to activate devices such as ignition coil drivers and test vehicle circuits.
  • Automatic Test Lead Connection Detection: Easily identify good or bad connections with color-coded indicators for seamless troubleshooting.
  • No Setup Required: With the powerful Deep Record function, grab extensive data without setup and manipulate waveforms effortlessly.
  • Automatic Voltage Attenuator: Let the scope handle voltage adjustments automatically for hassle-free operation.
  • Pressure Transducer Support: Drive up to four pressure transducers simultaneously with full pressure/vacuum conversions.

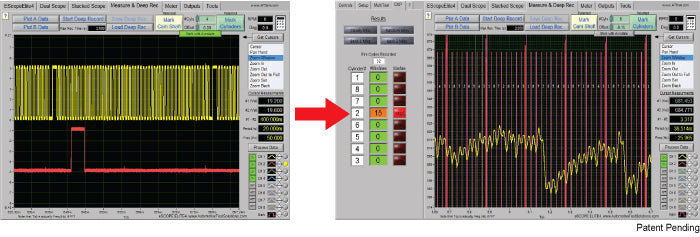

  • Patented Overlay Technology: Overlay an engine cycle grid over waveforms for enhanced analysis, particularly useful with pressure transducers.

eSCOPE ELITE4 Specifications:

  • Channels: 4 traces with separate colors for easy identification.
  • A/D Vertical Converter Resolution: 16 bit, offering fine voltage resolution over a large range.
  • Maximum Scope Throughput: 1 Mega samples per second.
  • Voltage Attenuator: Software-selectable attenuator up to +/-500V.
  • Display Modes: Dual Screen, Single Screen, Stacked Scope, Measure and Deep record, and Meter.
  • Deep Record Mode: Record data effortlessly without setup and manipulate waveforms as needed.
  • Pressure Transducer: Drive four pressure transducers simultaneously with full conversions.
  • Ignition Analyzer: Includes comprehensive software for ignition analysis.
  • PC Compatibility: Compatible with any Windows-based PC.
  • Power Requirements: Powered via PC’s USB connector.
  • USB Connection: Supports USB 2.0 or USB 3.0.
  • Scope Storage: Unlimited storage of waveforms and settings.
  • Support: Built-in help features plus U.S.-based customers receive live one-on-one log-in support.

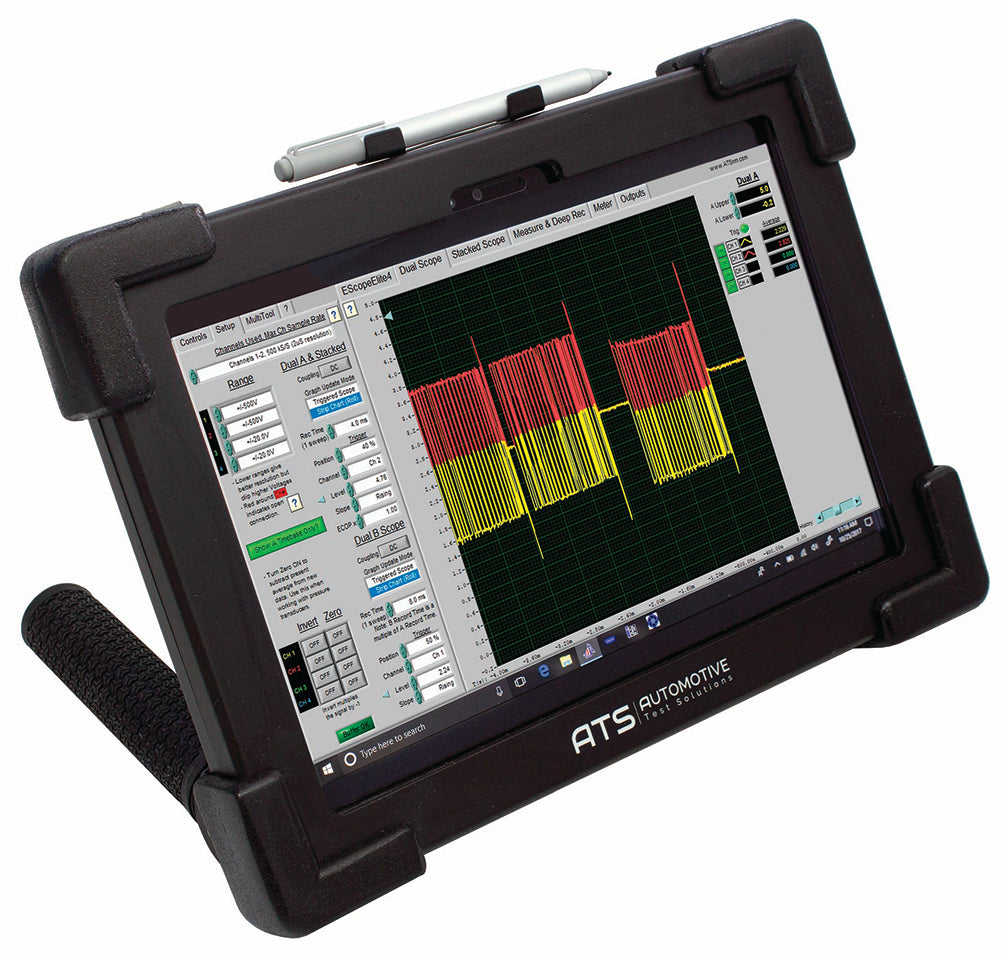

Surface Pro 7 Tablet Specifications:

  • Operating System: Windows 10 Home 64-bit Operating System
  • Processor: Quad-core 10th Gen Intel® Core™ i5-1035G4 Processor
  • Hard Drive: 128 GB solid-state drive
  • Graphics: Intel® Iris™ Plus Graphics
  • Security: Firmware TPM, Enterprise-grade protection with Windows Hello face sign-in
  • Memory: 8GB RAM
  • Wireless: Wi-Fi 6: 802.11ax compatible Bluetooth Wireless 5.0 technology
  • Ports: Full-size USB 3.0
  • Screen: 12.3” PixelSense™ Display
  • Cameras: 5.0MP front-facing camera with 1080p full HD video, 8.0MP rear-facing autofocus camera with 1080p full HD video
  • Audio: Dual far-field Studio Mics, 1.6W stereo speakers with Dolby® Audio™
  • Sensors: Ambient light sensor, Accelerometer, Gyroscope, Magnetometer
  • Surface Pen: Bluetooth 5.0 wireless technology
  • Screen Protection: 9H hardness, crystal clear tempered
  • Warranty: 1-year limited hardware warranty
