ADAS CV Pattern CSC0611-06

SKU: 611-06

Consultation Needed

Call a Sales Rep Today to Learn More Here or fill our form below and we will get back to you as soon as possible.

If you want to learn more about this tool and how it will work in your shop. Fill out the form below.

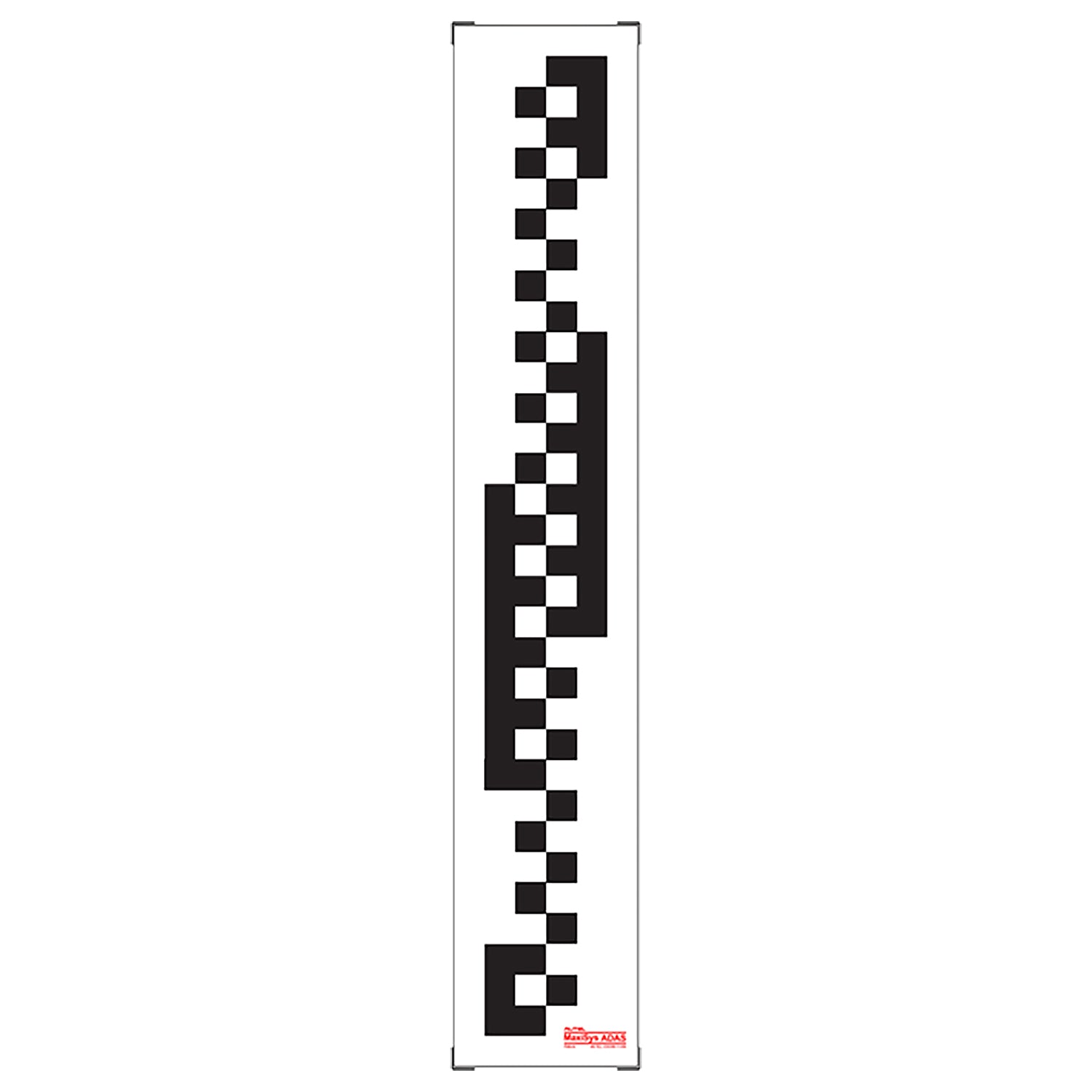

ADAS CV Pattern for LDW Calibration (CSC0611-06)

Elevate your vehicle service capabilities with the ADAS CV Pattern, CSC0611-06. This Lane Departure Warning (LDW) calibration pattern is specifically designed for the Bendix Wingman safety system camera, ensuring your calibrations are precise and compliant with safety standards.

Key Features:

  • Versatile Compatibility: Seamlessly integrates with both MaxiSYS ADAS Standard and MA600 frames, providing flexibility in how you set up your calibration workspace.
  • Essential Tool Requirements: For effective use, the MA600 frame necessitates the ADAS CV Pattern Bracket CSC050A-02 (available separately), allowing secure attachment of the pattern for accurate calibration.
  • Advanced Calibration Software Support: To facilitate comprehensive calibration, use this pattern with the MaxiSYS MS909 CV tablet, which comes preloaded with specialized software for static and dynamic ADAS calibration across light, medium, and heavy-duty vehicles.
  • Warranty Protection: Includes a one-year limited warranty, giving you peace of mind with your investment.

With the ADAS CV Pattern, CSC0611-06, enhance your workshop’s diagnostic and calibration services to meet modern safety requirements efficiently. It is an indispensable tool for workshops committed to maintaining the highest quality standards in ADAS system calibration.

Discover more about integrating this essential tool into your calibration processes on our Heavy Duty Page. Equip your service with the necessary tools for handling advanced vehicle safety systems accurately and reliably.


  • Lane Departure Warning (LDW) camera calibration pattern
  • Pattern number CSC0611-06
  • Calibrates camera of  Bendix® Wingman® safety system
  • Compatible with MaxiSYS ADAS Standard and MA600 frames
  • MA600 frame requires ADAS CV Pattern Bracket CSC050A-02 (sold separately) to attach pattern
  • Includes a one-year limited warranty
