AUTEL MS Ultra ADAS Tablet

In stock
SKU: ADASMSUltraTablet

Please Sign In For Price

Rendering loop-subscriptions

Need more information or help deciding on whether this tool is right for you? Get In Touch With A Sale Rep Today!

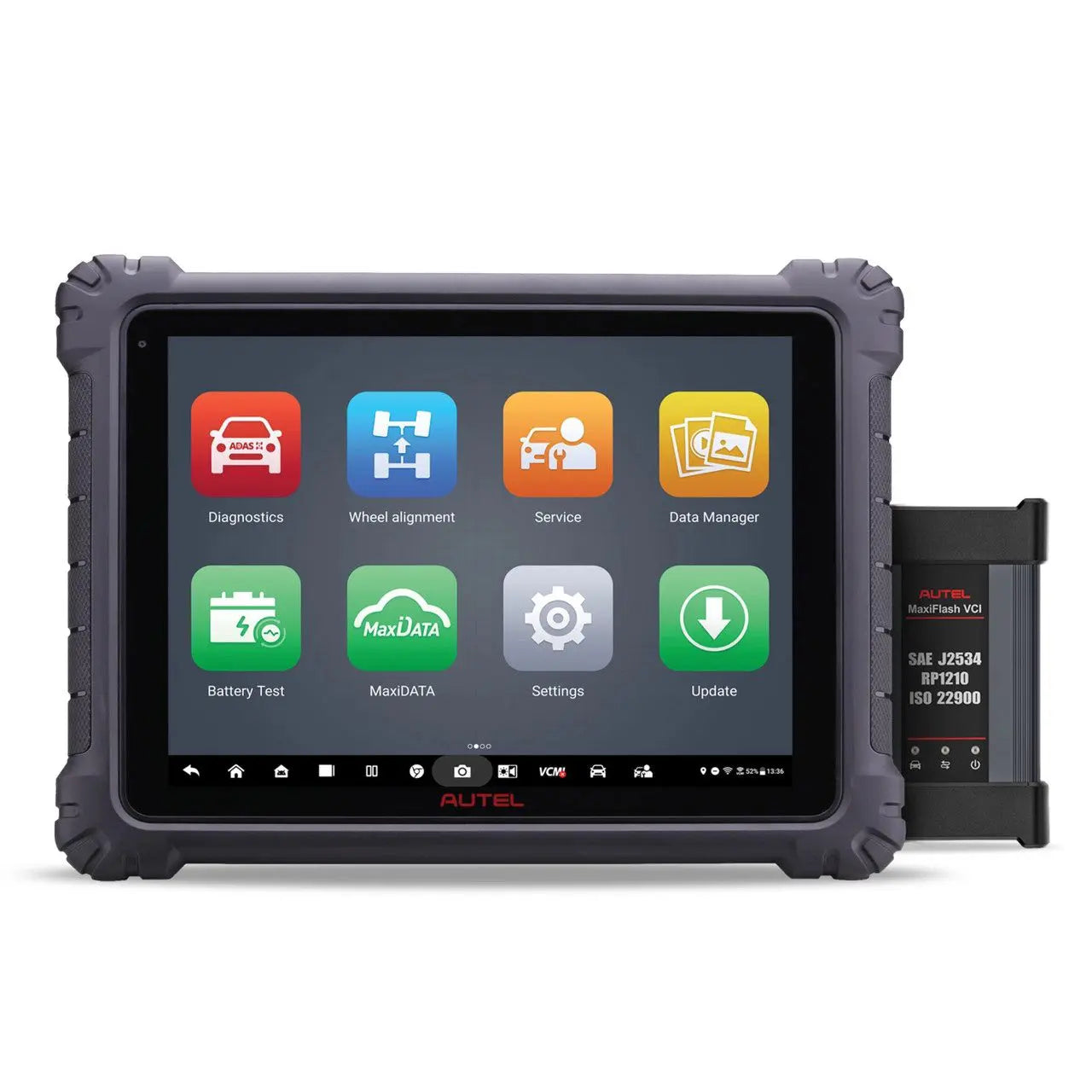

The MSULTRA + ADAS tablet is a comprehensive diagnostic tool for vehicles, offering advanced functionalities such as ADAS calibration and Wheel Alignment software. With its 12.9-inch touchscreen, Android 7.0 OS, and powerful octa-core processor, it's designed for in-depth vehicle diagnostics. The tablet includes a 5-in-1 VCMI device, enabling a range of tests and diagnostics with wireless connectivity. It supports extensive vehicle protocols and comes with a suite of accessories for versatile use, backed by a one-year warranty and software subscription.


  • Advanced Interface: Features a 12.9-inch high-resolution touchscreen on Android 7.0 for intuitive diagnostics.
  • Powerful Performance: Equipped with a 2.3GHz + 1.7GHz Octa-core Processor and 256GB memory for fast, efficient operations.
  • Comprehensive Diagnostics Toolset: Includes an advanced VCMI 5-In-1 Device, supporting a wide range of diagnostics and calibrations.
  • Connectivity and Protocols: Offers new VCI protocols and dual Wi-Fi for seamless integration with vehicles and networks.
  • Diagnostic and Calibration Software: Comes with ADAS calibration, Wheel Alignment software, and access to a vast library for DTC troubleshooting and repair tips.

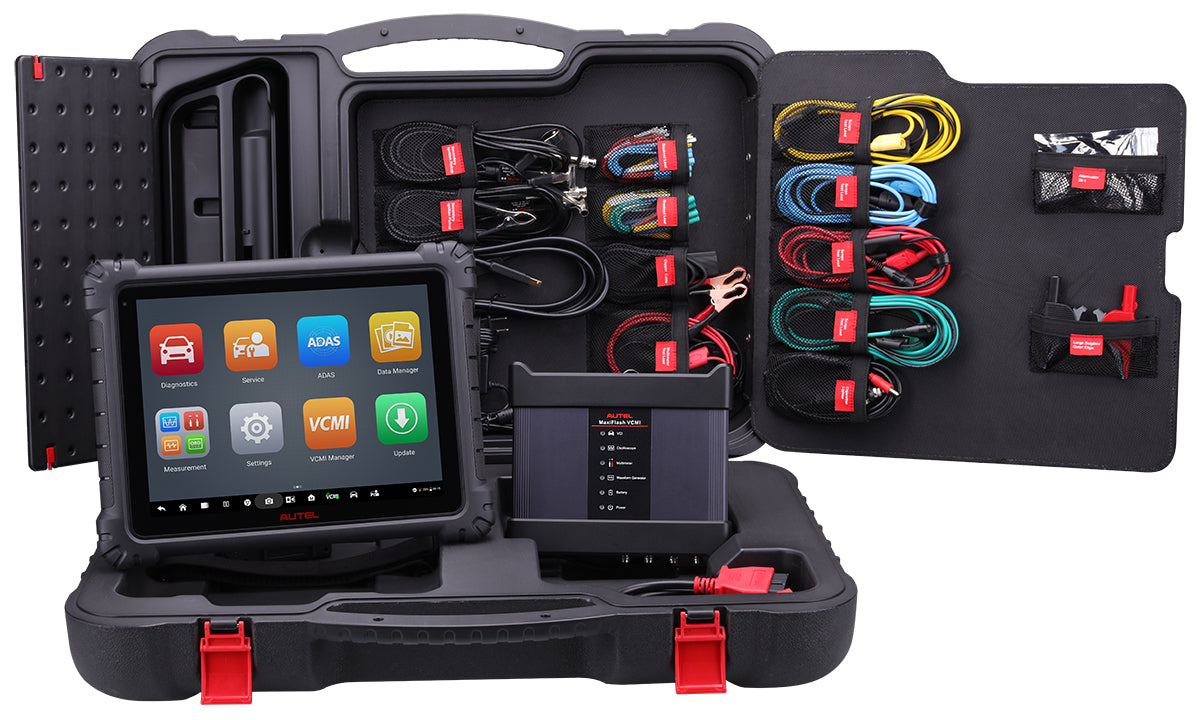

  • Additional Features: Secure Gateway Access for FCA vehicles, enhanced diagnostic reports, and essential accessories like docking station and cables.


Operating System: Android 7.0

Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

Memory: 4GB RAM & 256GB On-board Memory

Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen


WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO)

BT v.2.1 + EDR


USB 2.0 (Two USB HOST Type A, one USB mini device)

HDMI 2.0

SD Card (Support up to 256GB)


Rear: 16 Megapixel, Autofocus with Flashlight

Front: 5 Megapixel

Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output:


Dual Speakers

3-Band 3.5 mm stereo/standard headset jack

Power and Battery:

18000mAh 3.8 V lithium-polymer battery

Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage: 12V/3A Adapter

Operating Temp: 0 to 50°C (32 to 122°F)

Storage Temperature: -20 to 60°C (-4 to 140°F)

Dimensions: (WxHxD) 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″) Weight 2.18kg (4.81 lb.)

Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
